Stop Carrying Buckets

SOVDA Lift moves up to 500kg of roasted coffee per hour — while pulling dust, chaff, and optional destoning along the way.

Black & White, United States

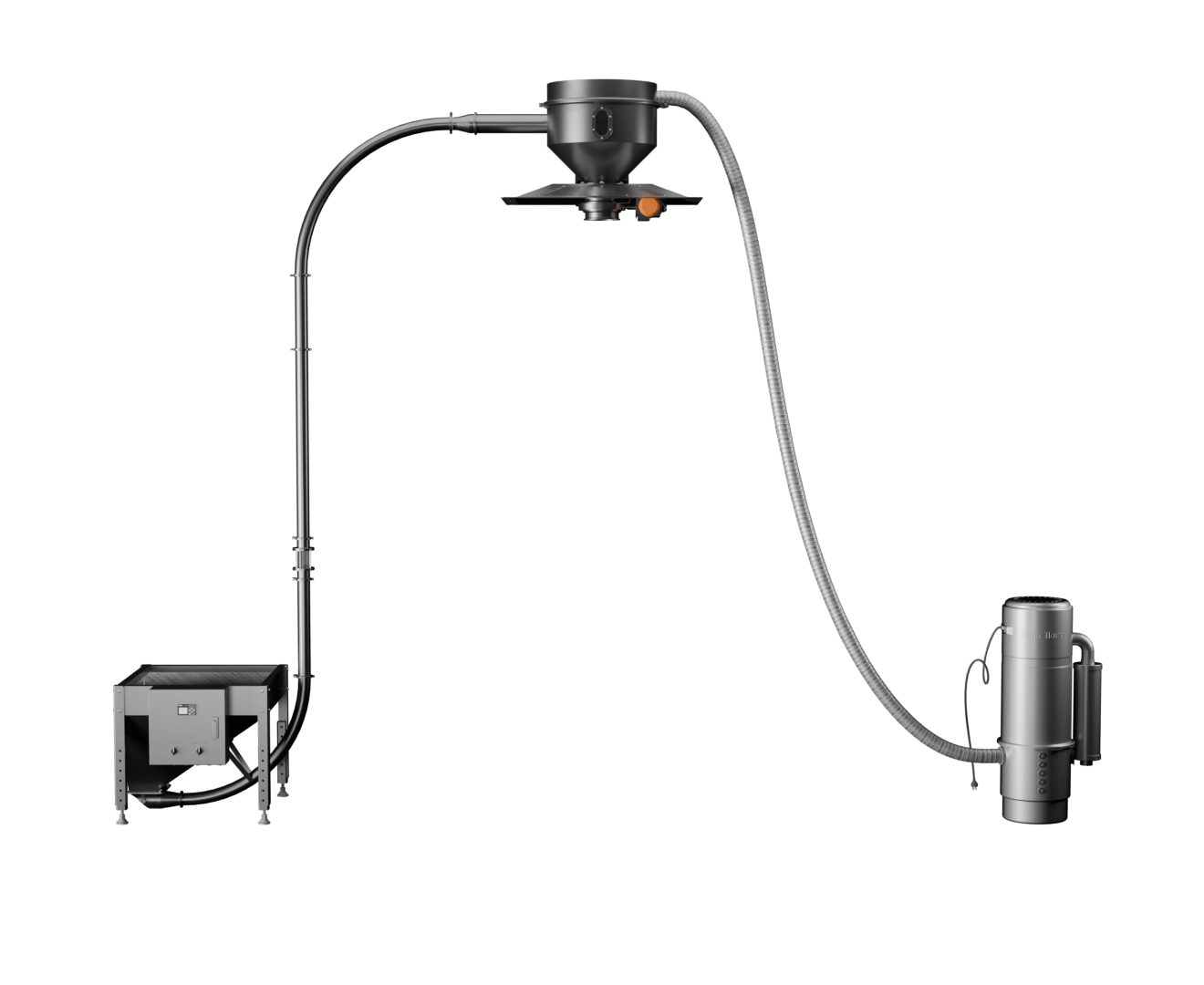

lift_central-vac_turntable_00

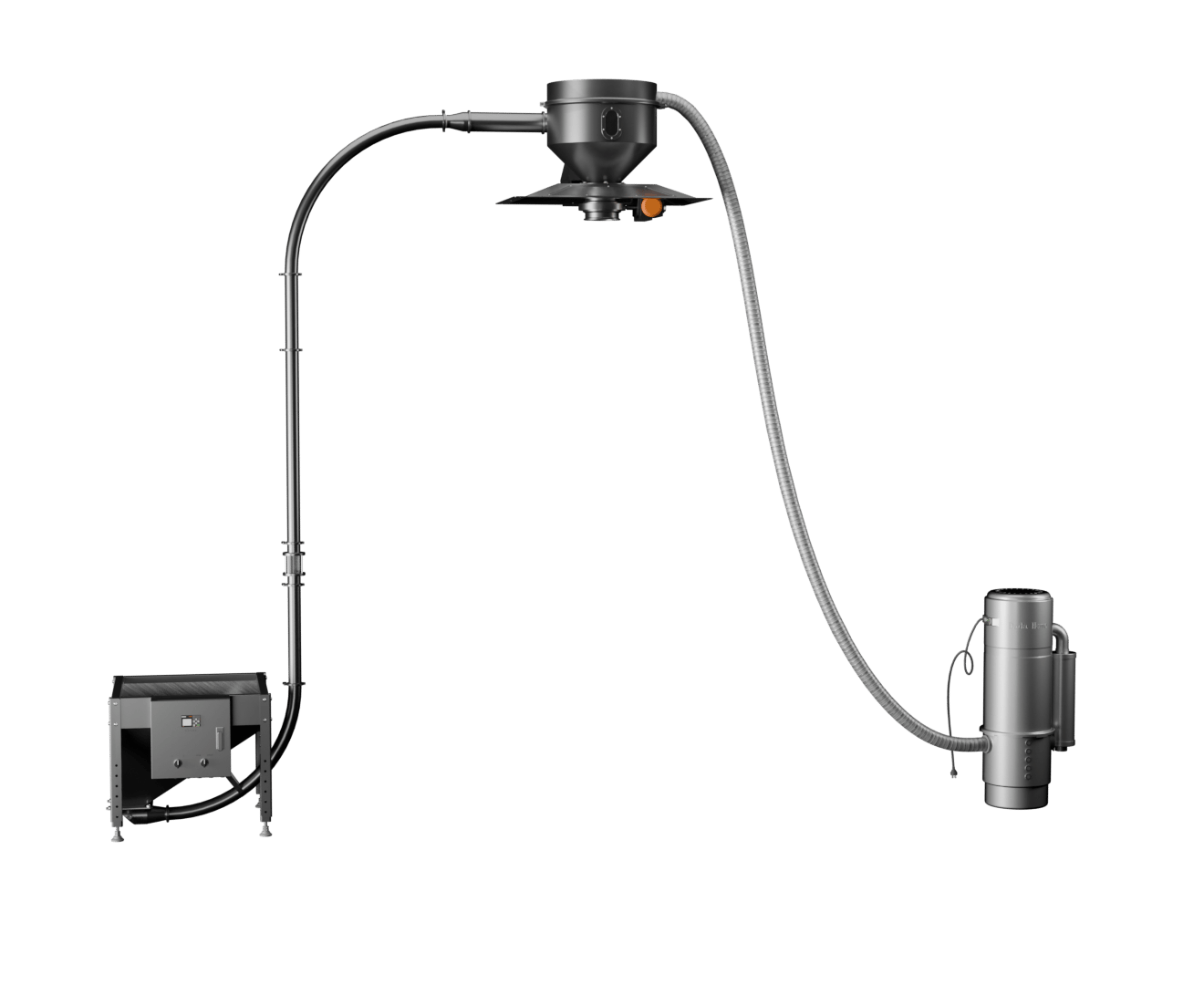

lift_central-vac_turntable_01

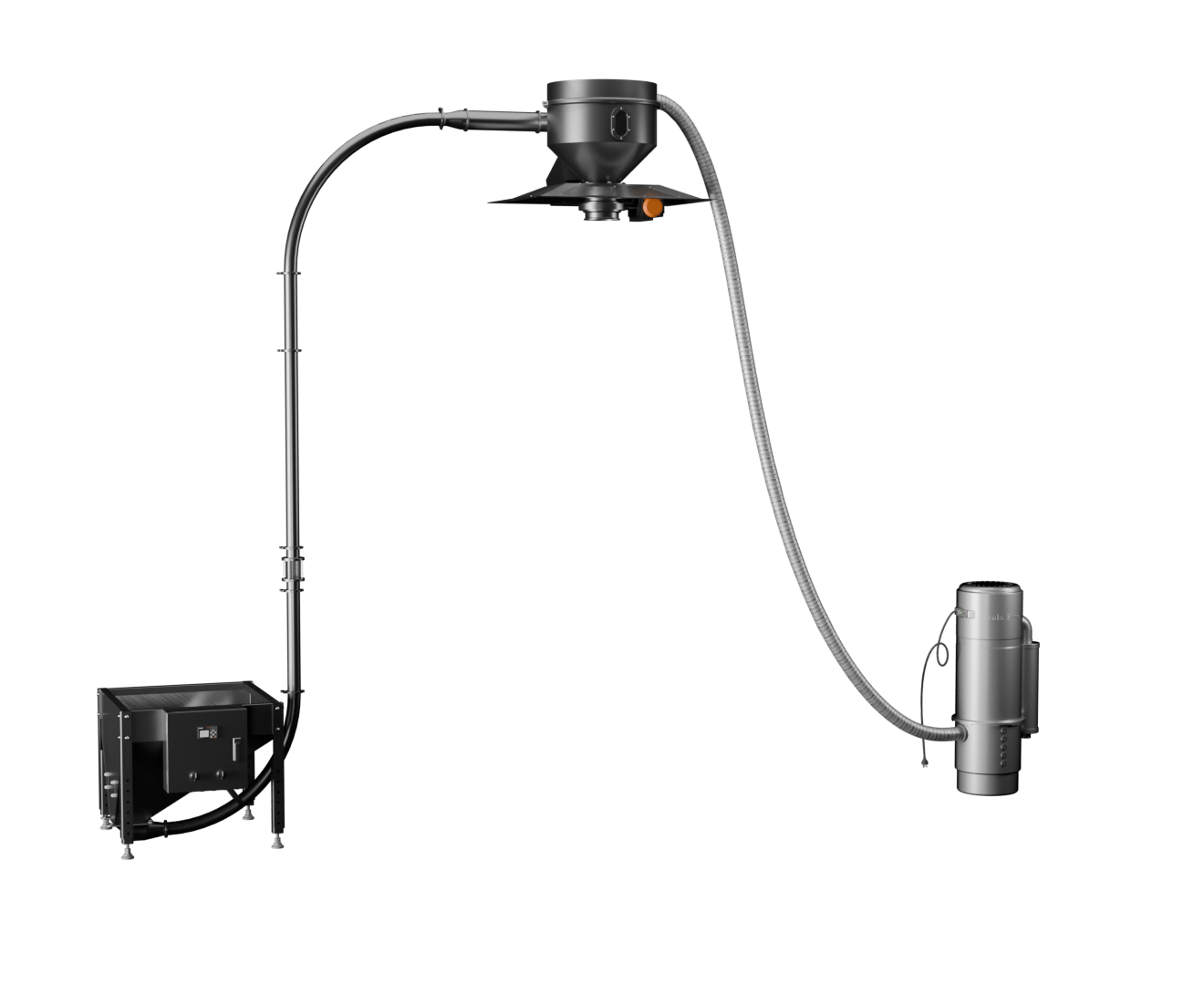

lift_central-vac_turntable_02

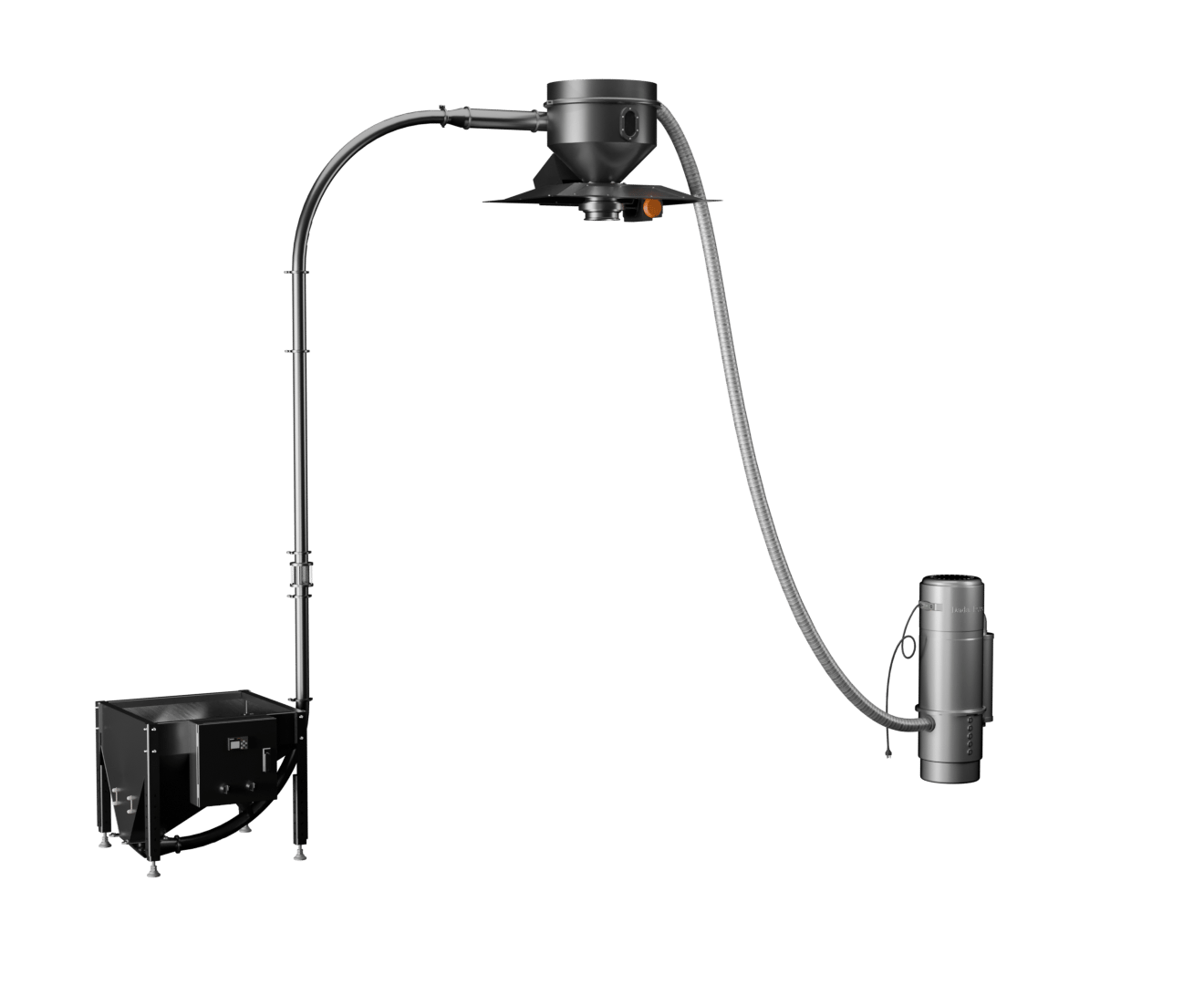

lift_central-vac_turntable_03

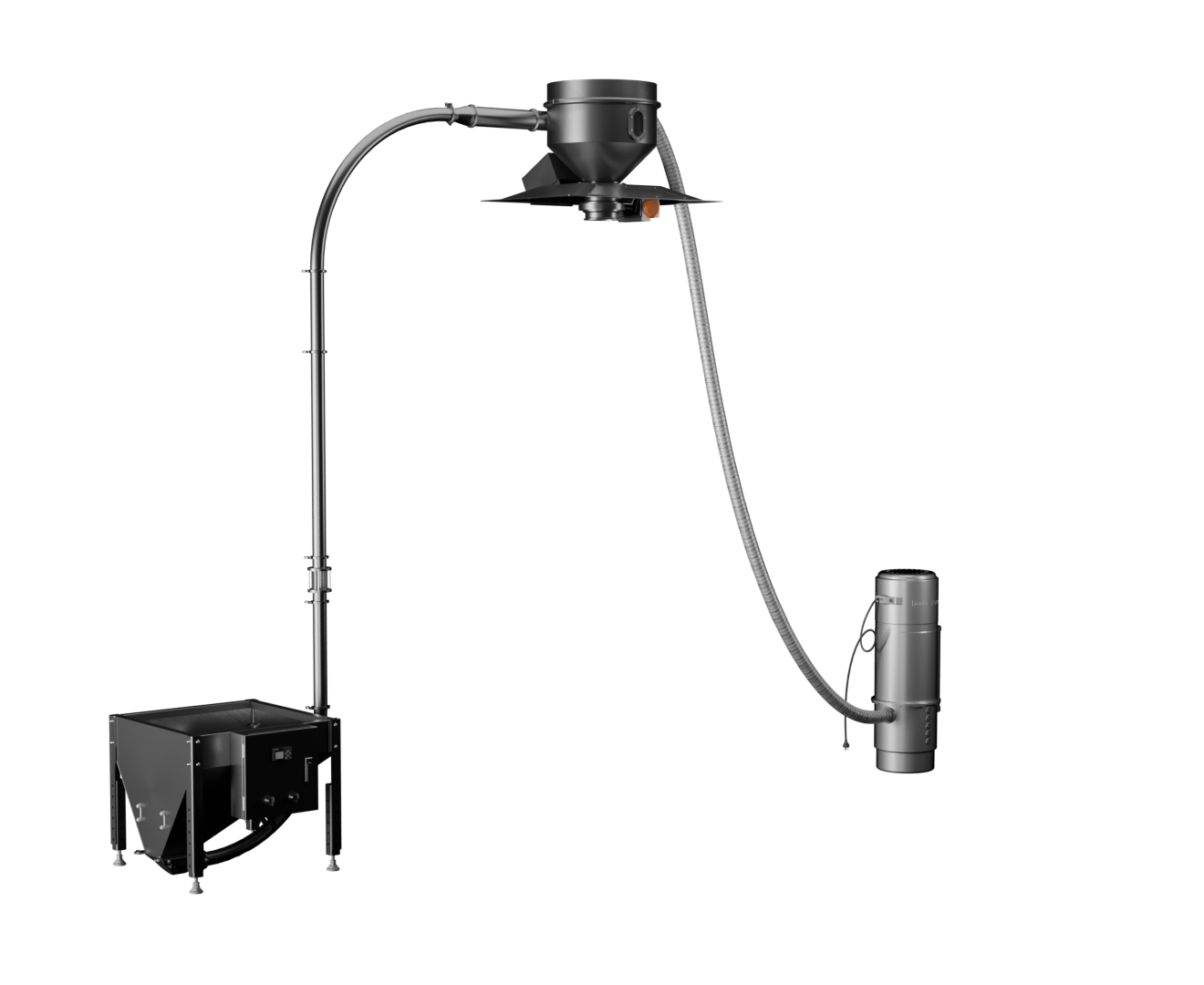

lift_central-vac_turntable_04

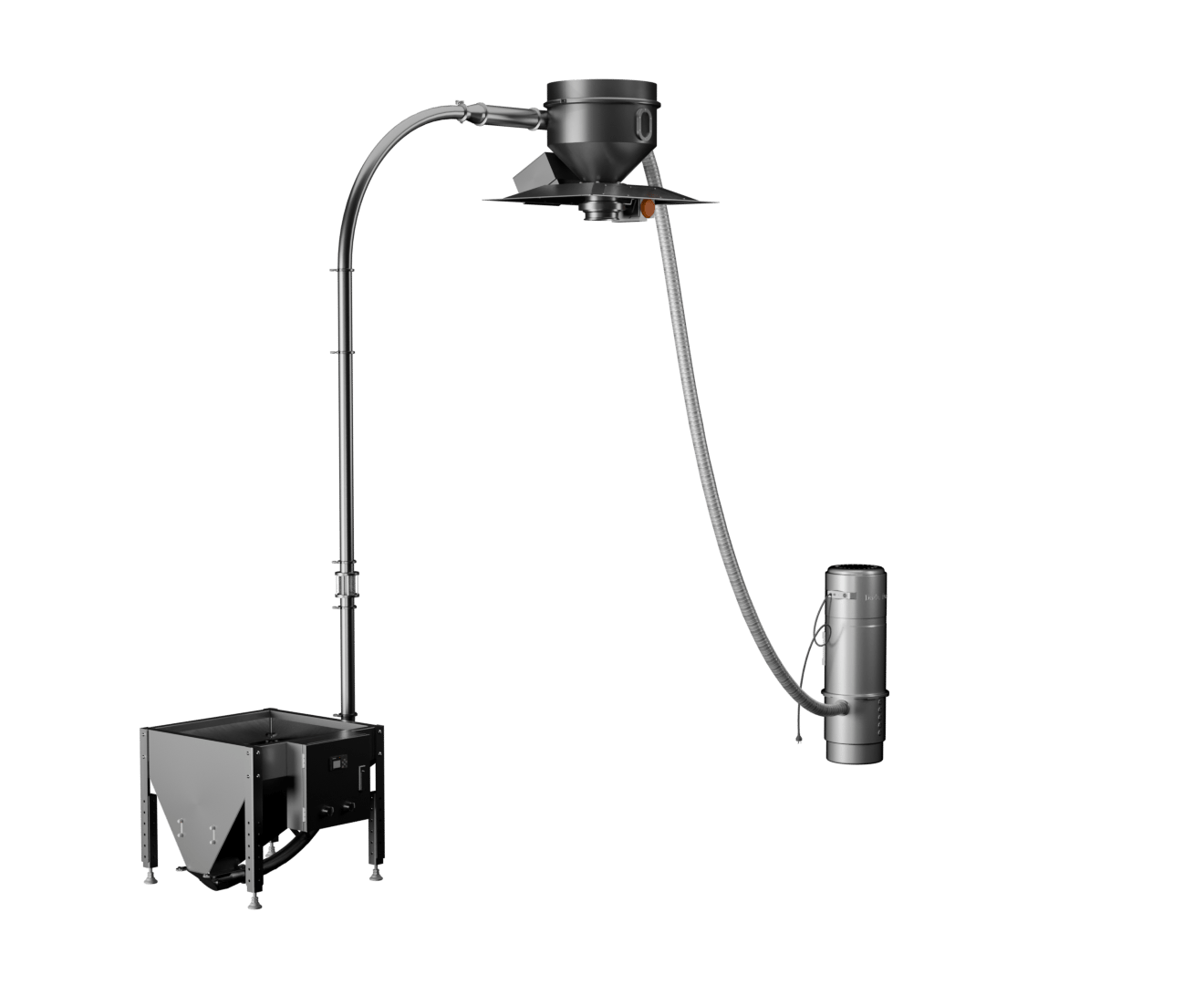

lift_central-vac_turntable_05

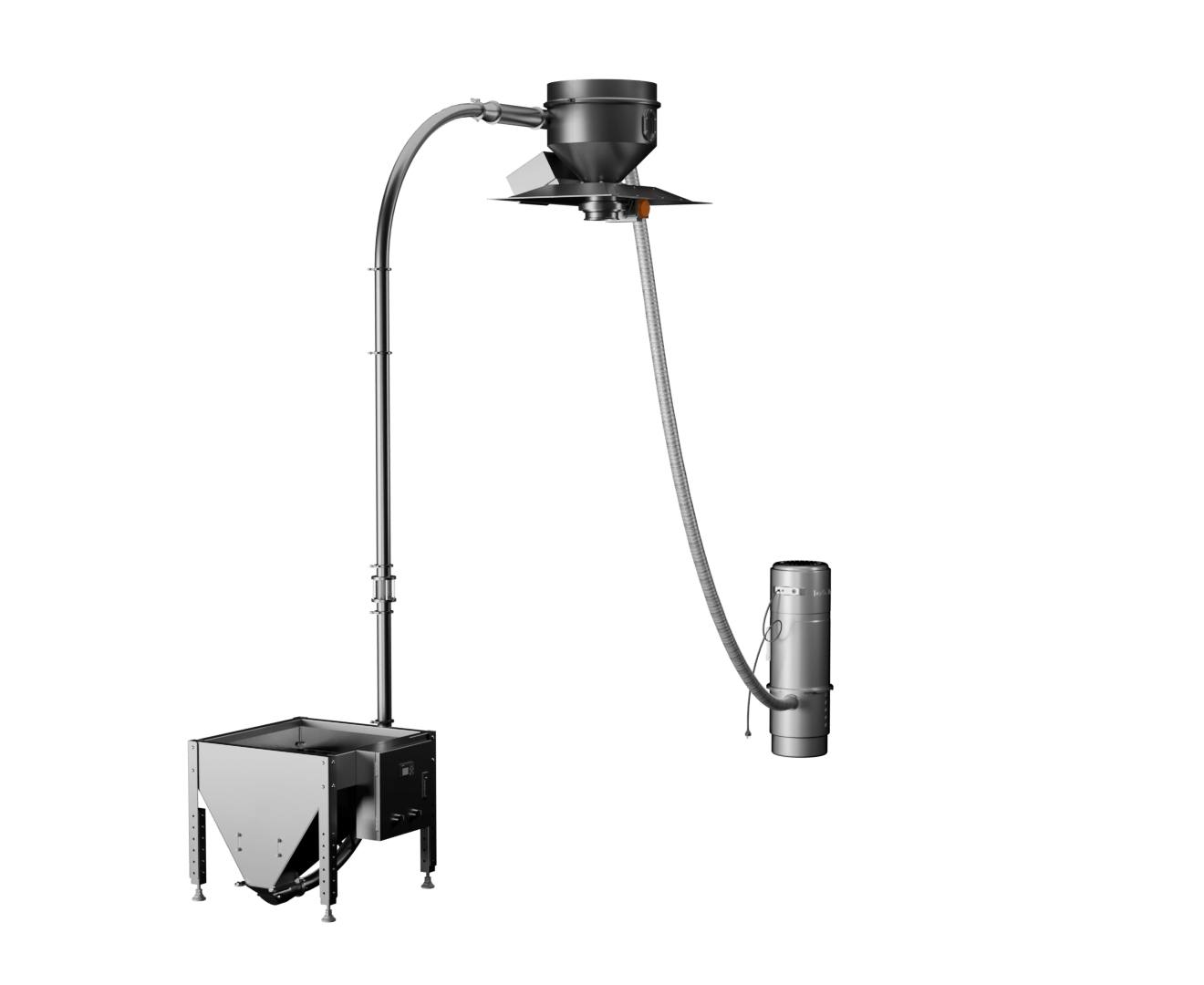

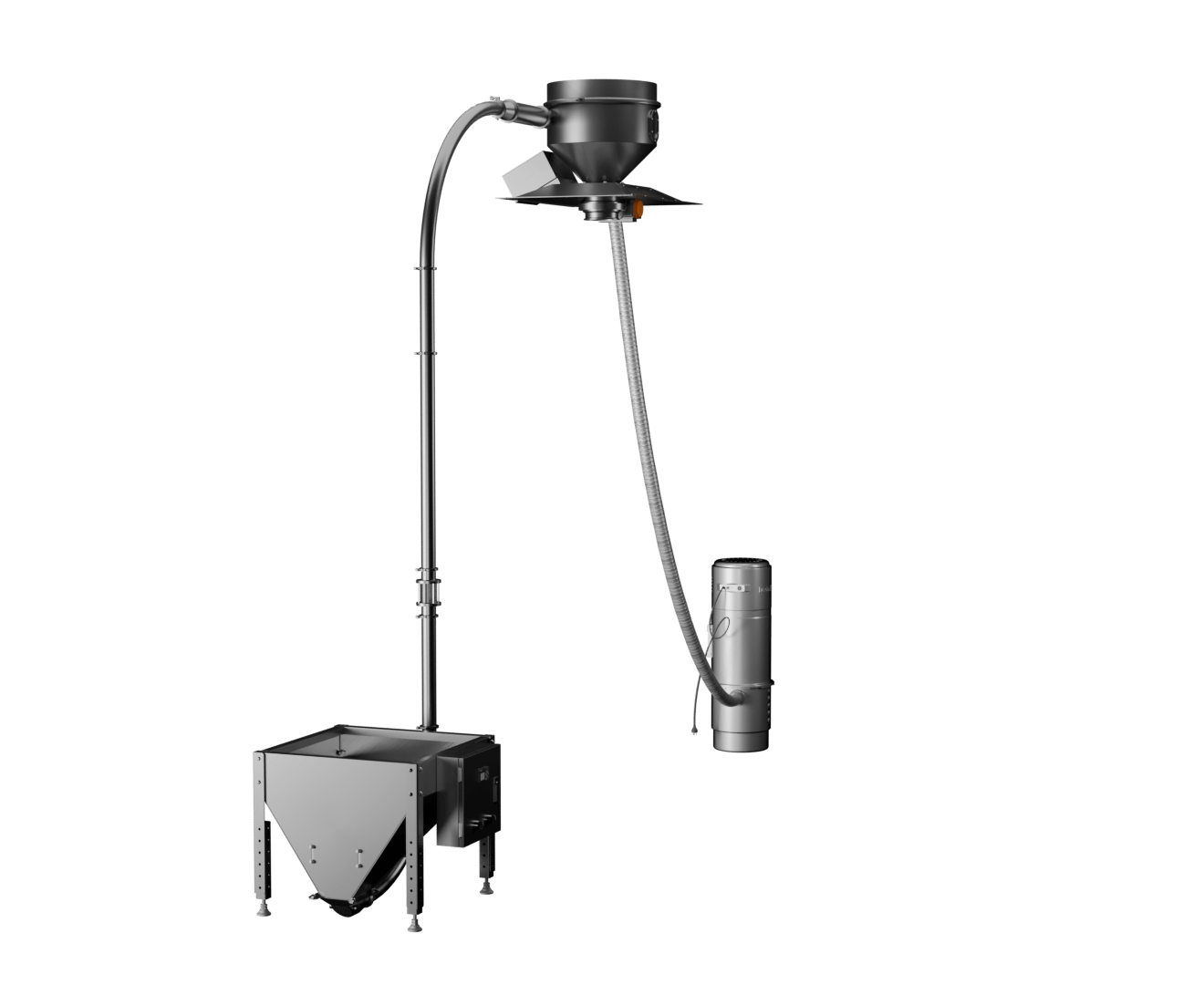

lift_central-vac_turntable_06
lift_central-vac_turntable_07

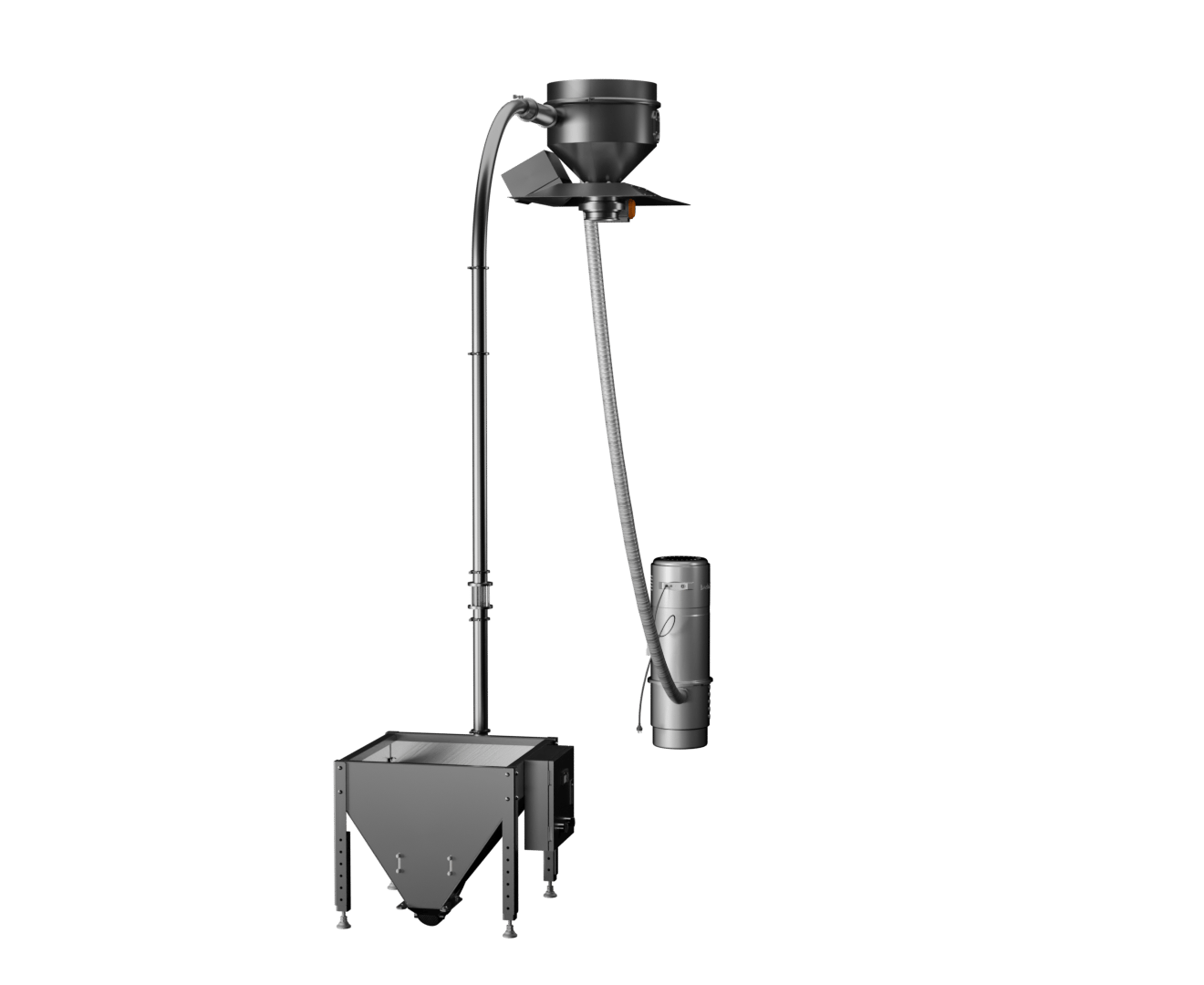

lift_central-vac_turntable_08

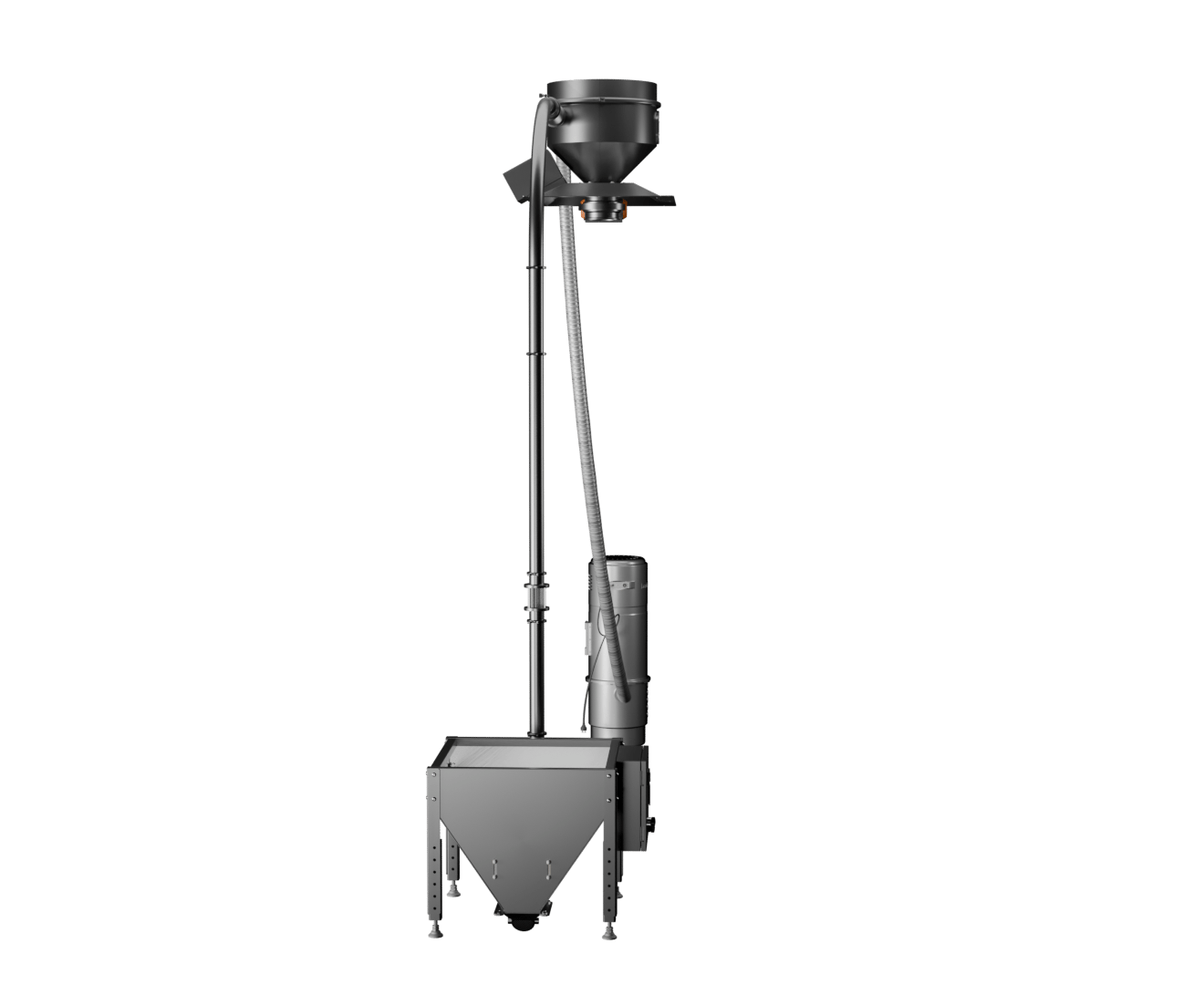

lift_central-vac_turntable_09

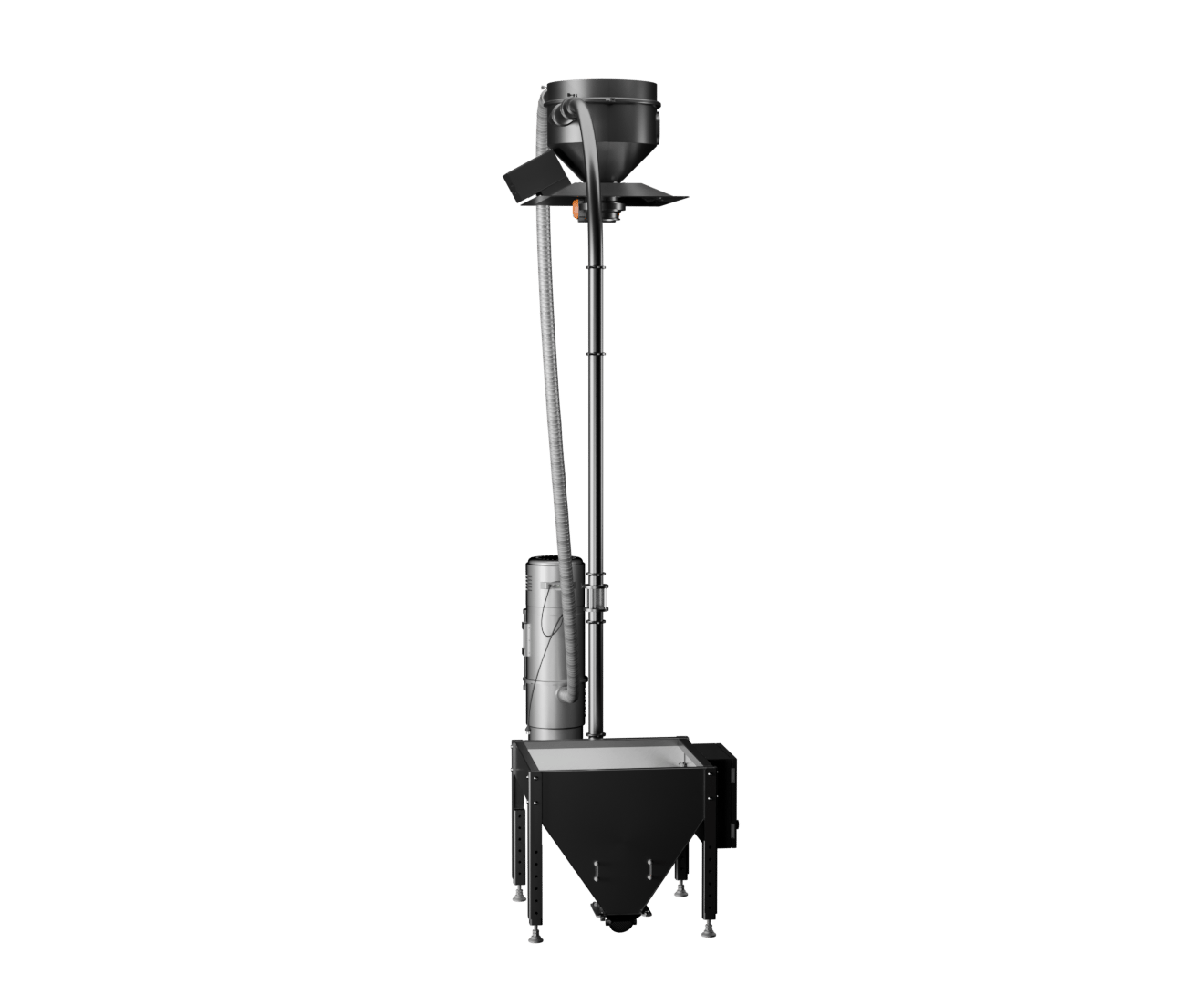

lift_central-vac_turntable_10
lift_central-vac_turntable_11

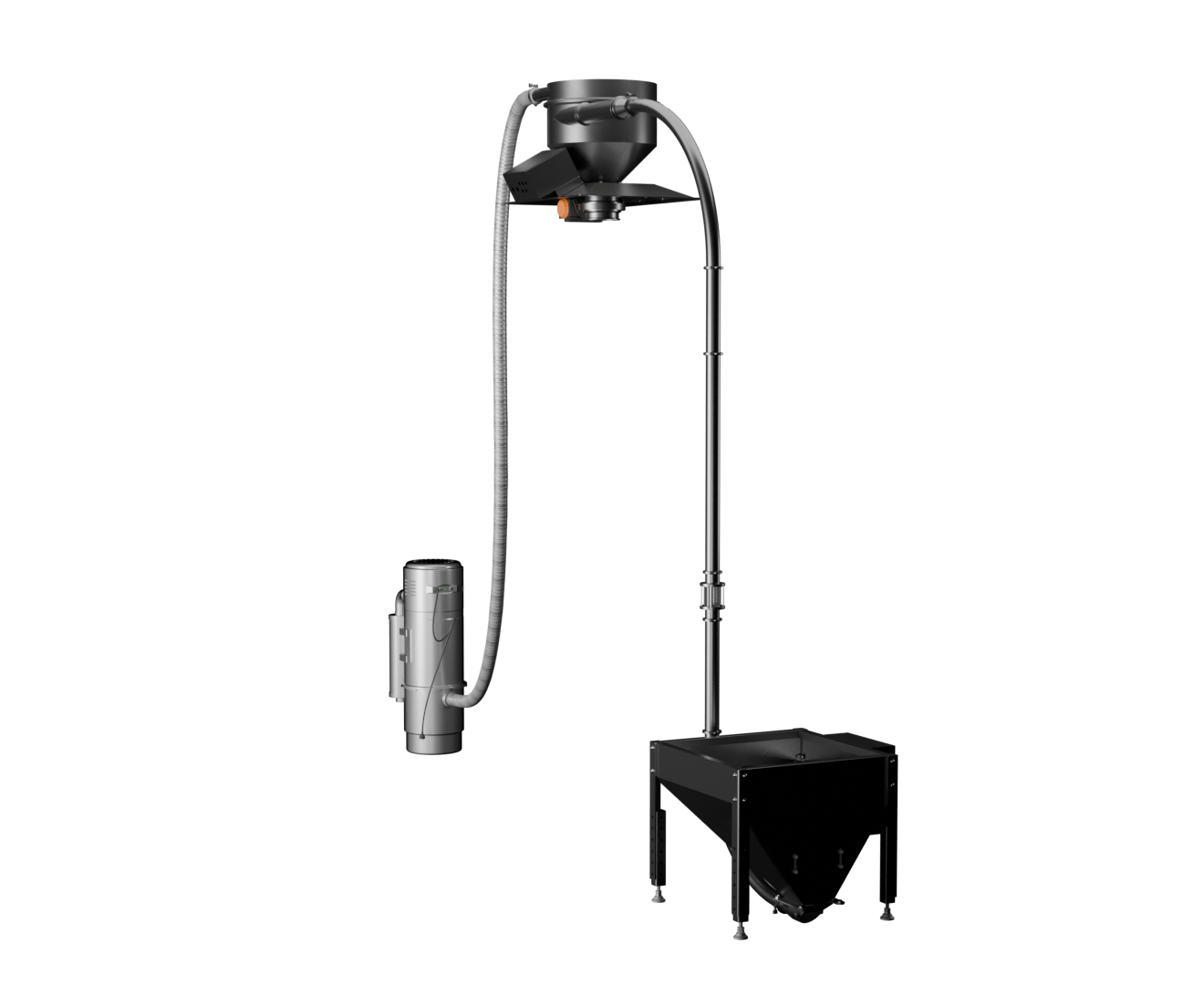

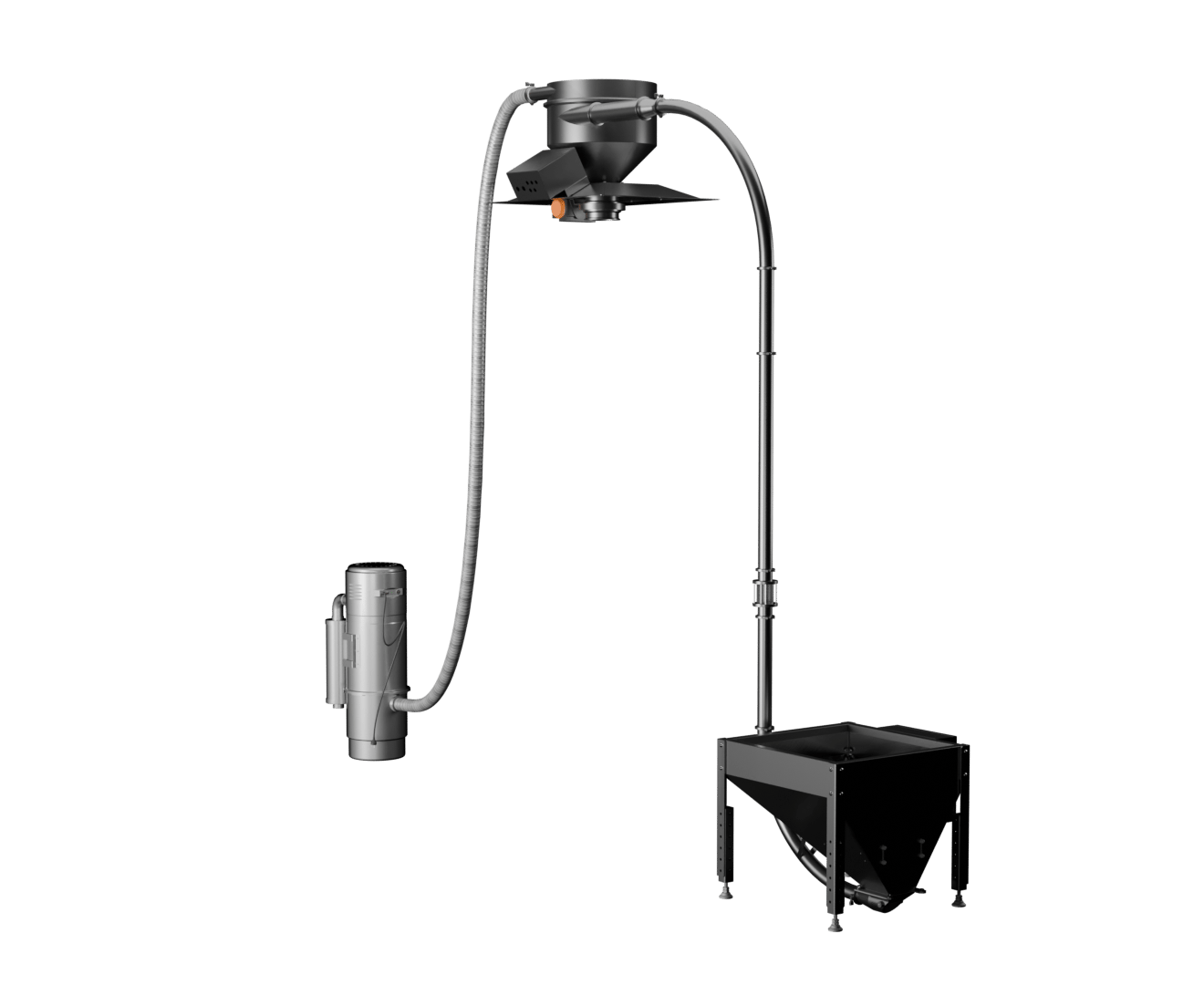

lift_central-vac_turntable_12

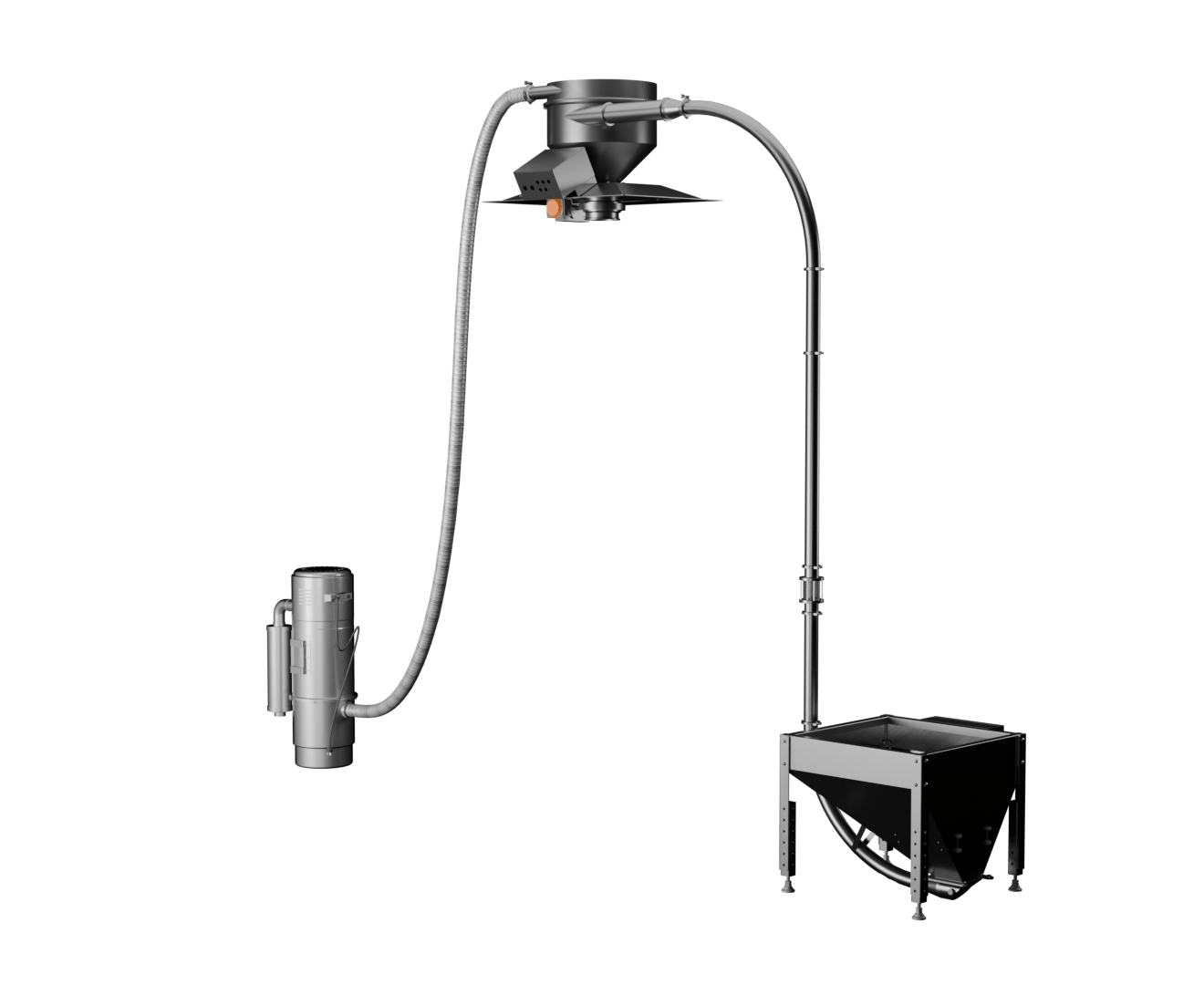

lift_central-vac_turntable_13
lift_central-vac_turntable_14

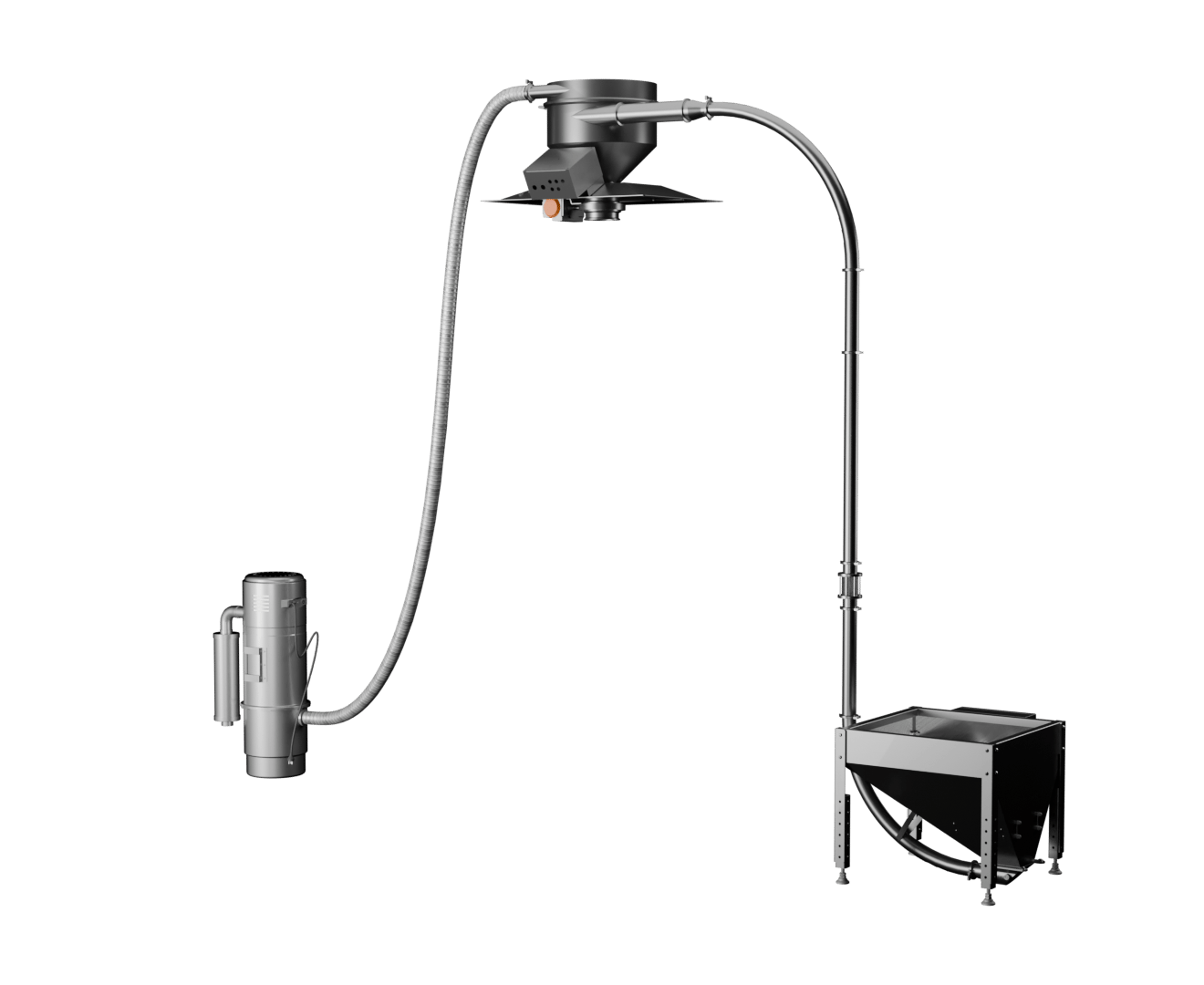

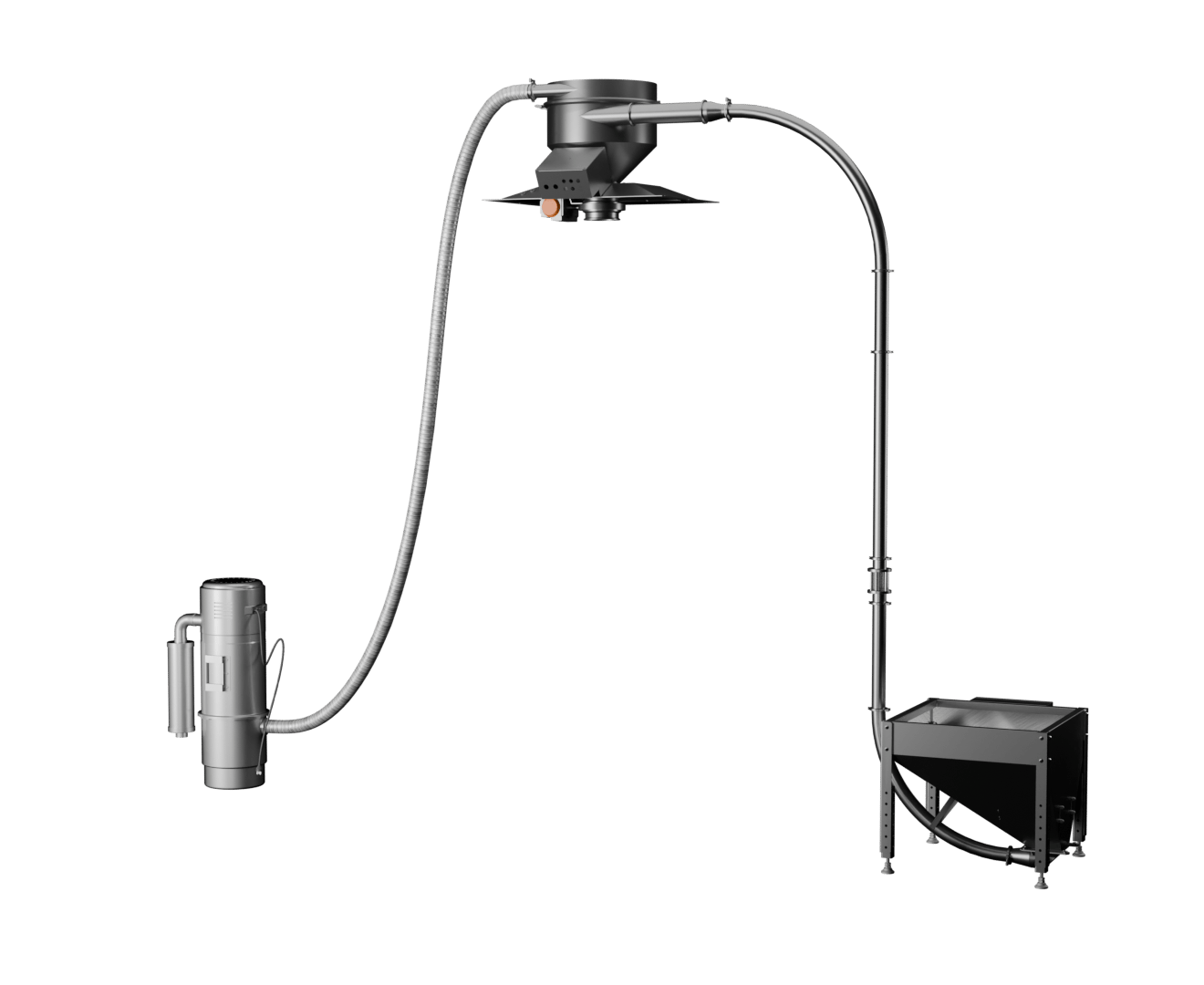

lift_central-vac_turntable_15
lift_central-vac_turntable_16
lift_central-vac_turntable_17
lift_central-vac_turntable_18

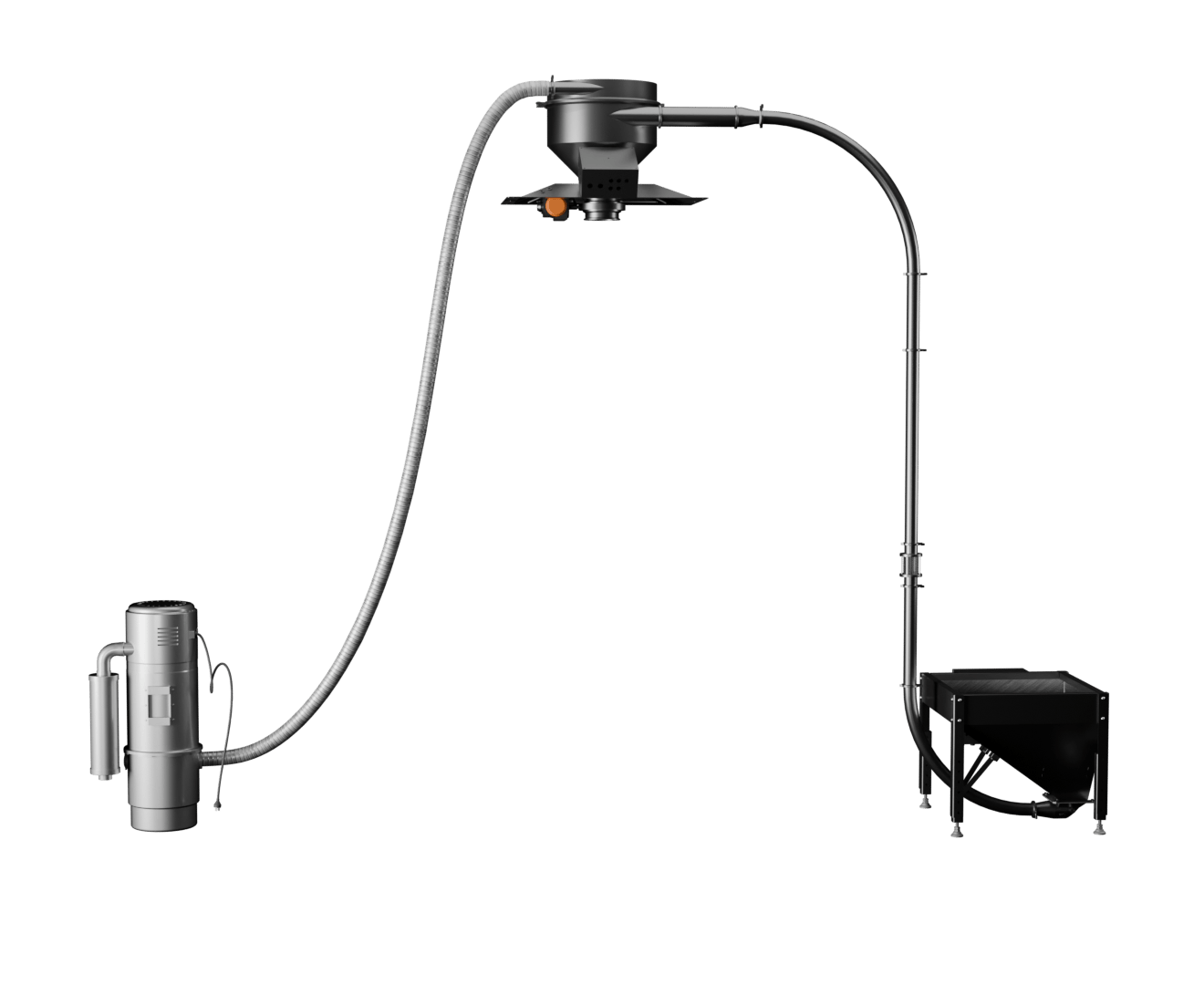

lift_central-vac_turntable_19

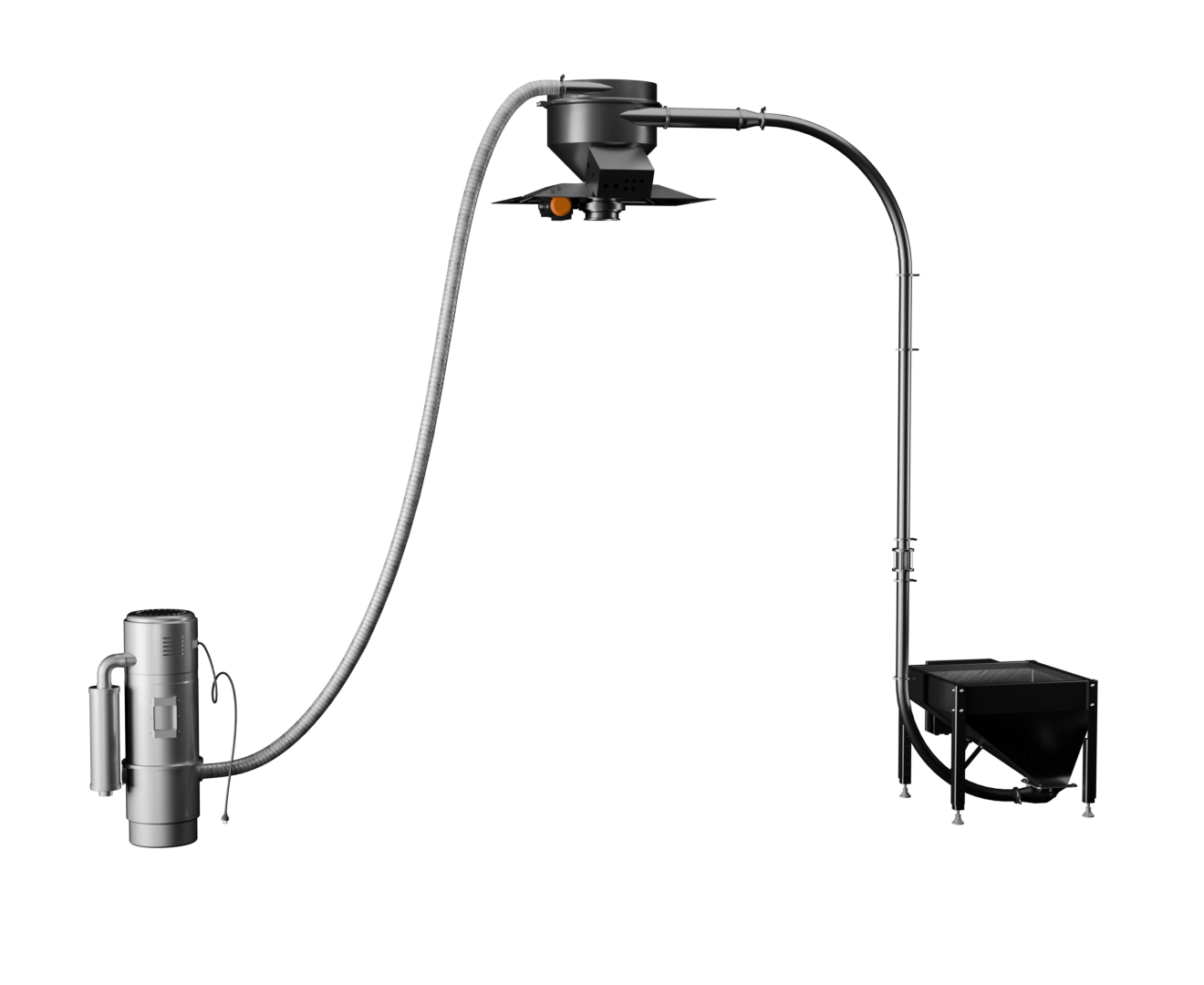

lift_central-vac_turntable_20
lift_central-vac_turntable_21

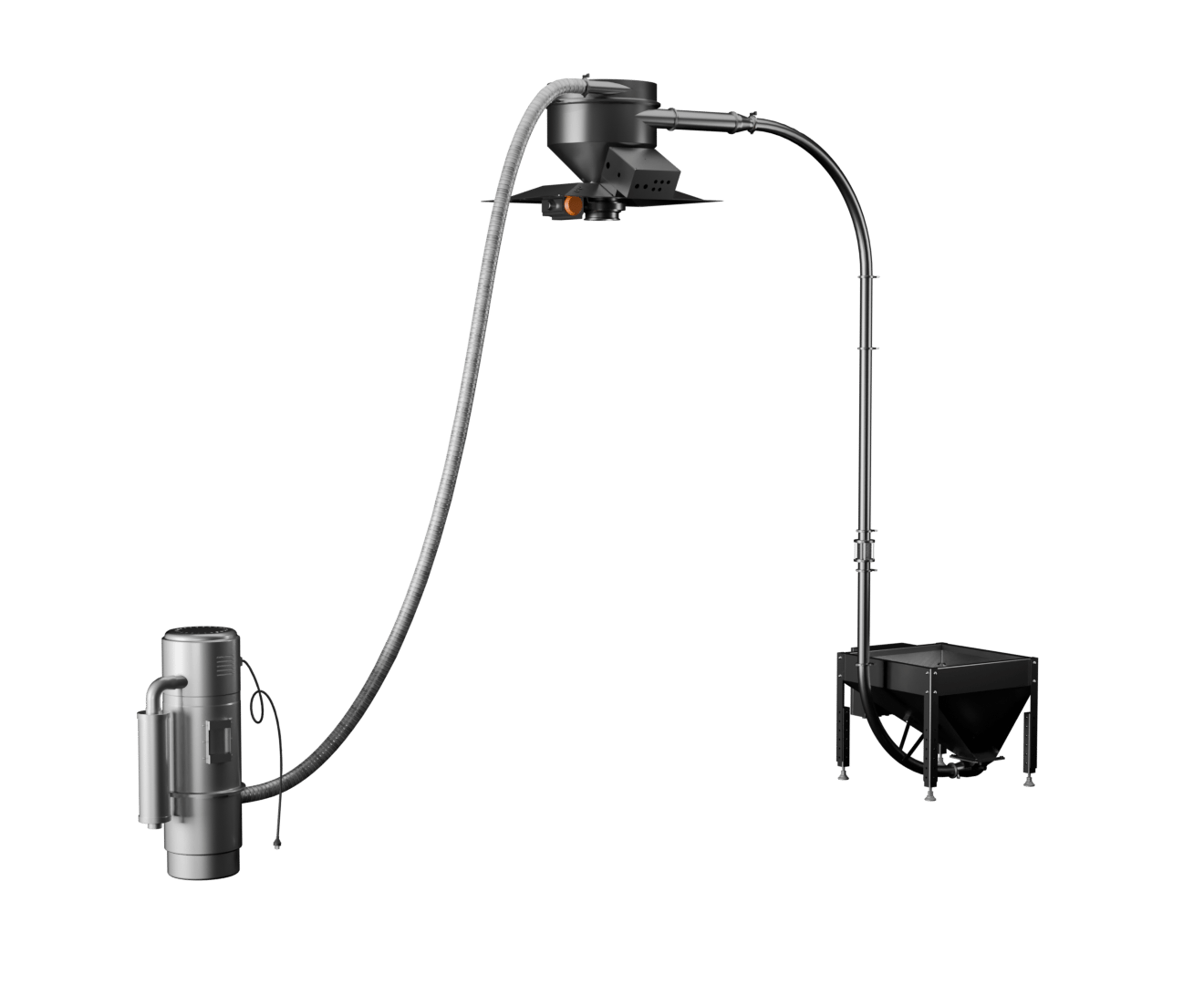

lift_central-vac_turntable_22

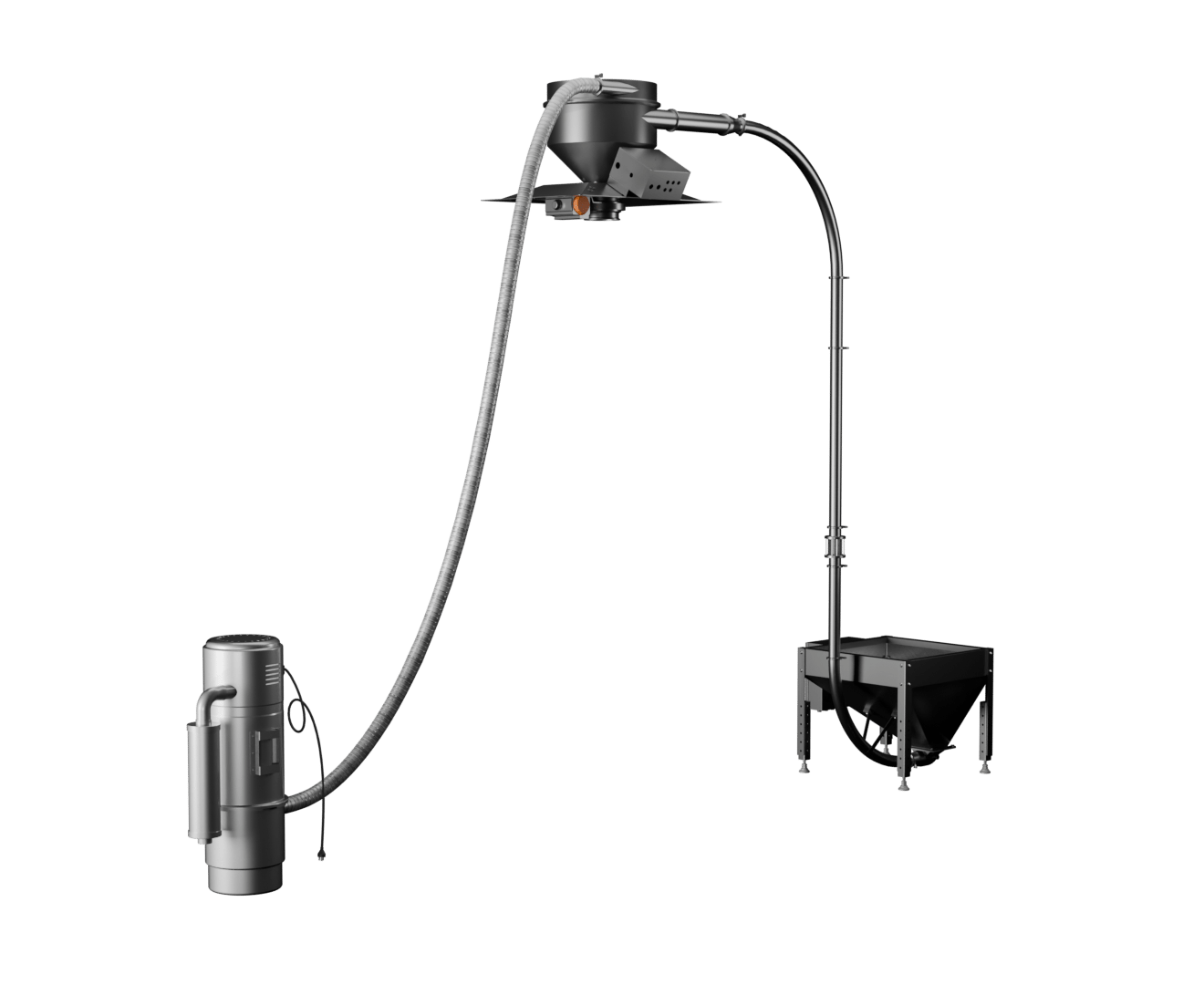

lift_central-vac_turntable_23
lift_central-vac_turntable_24

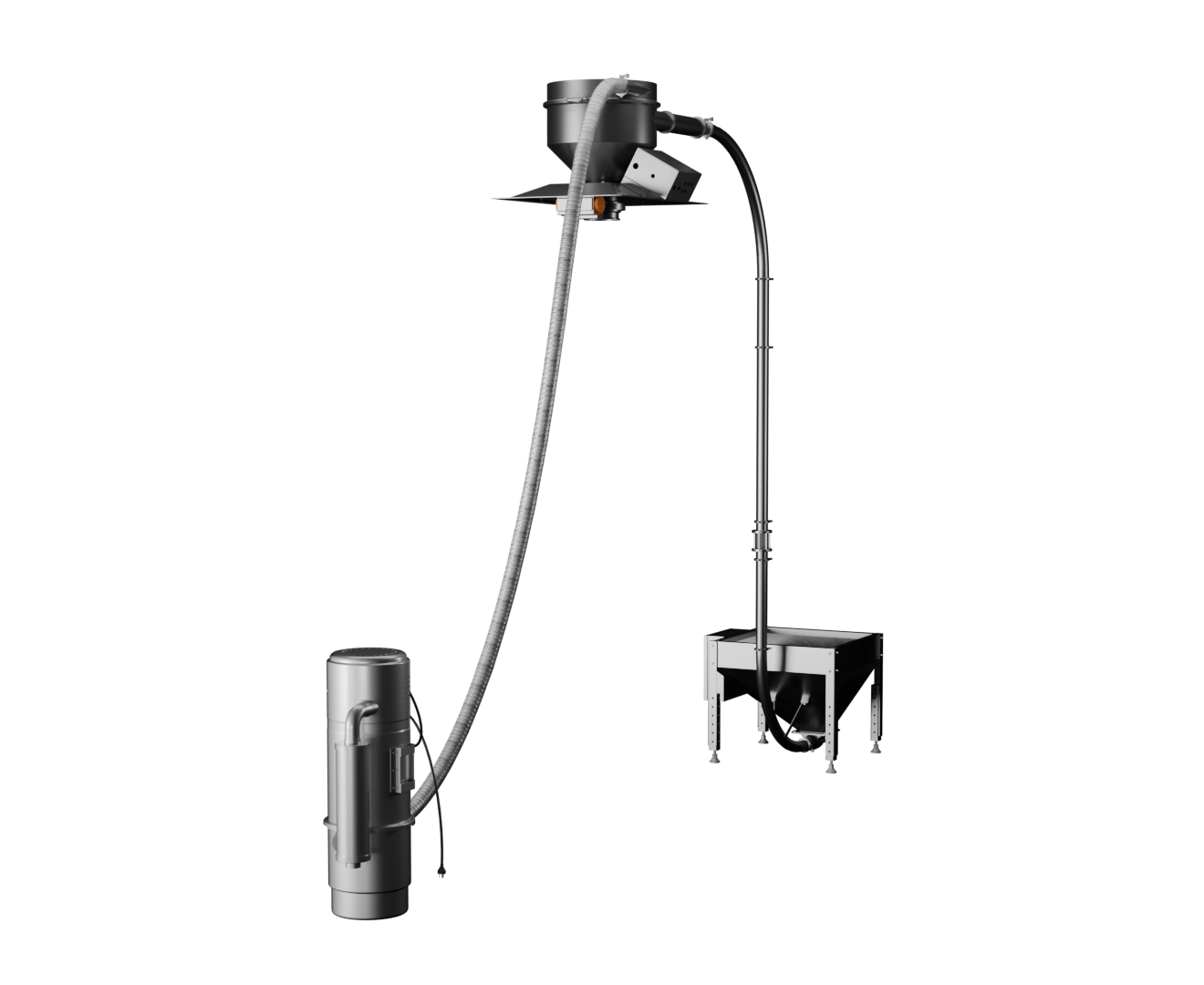

lift_central-vac_turntable_25

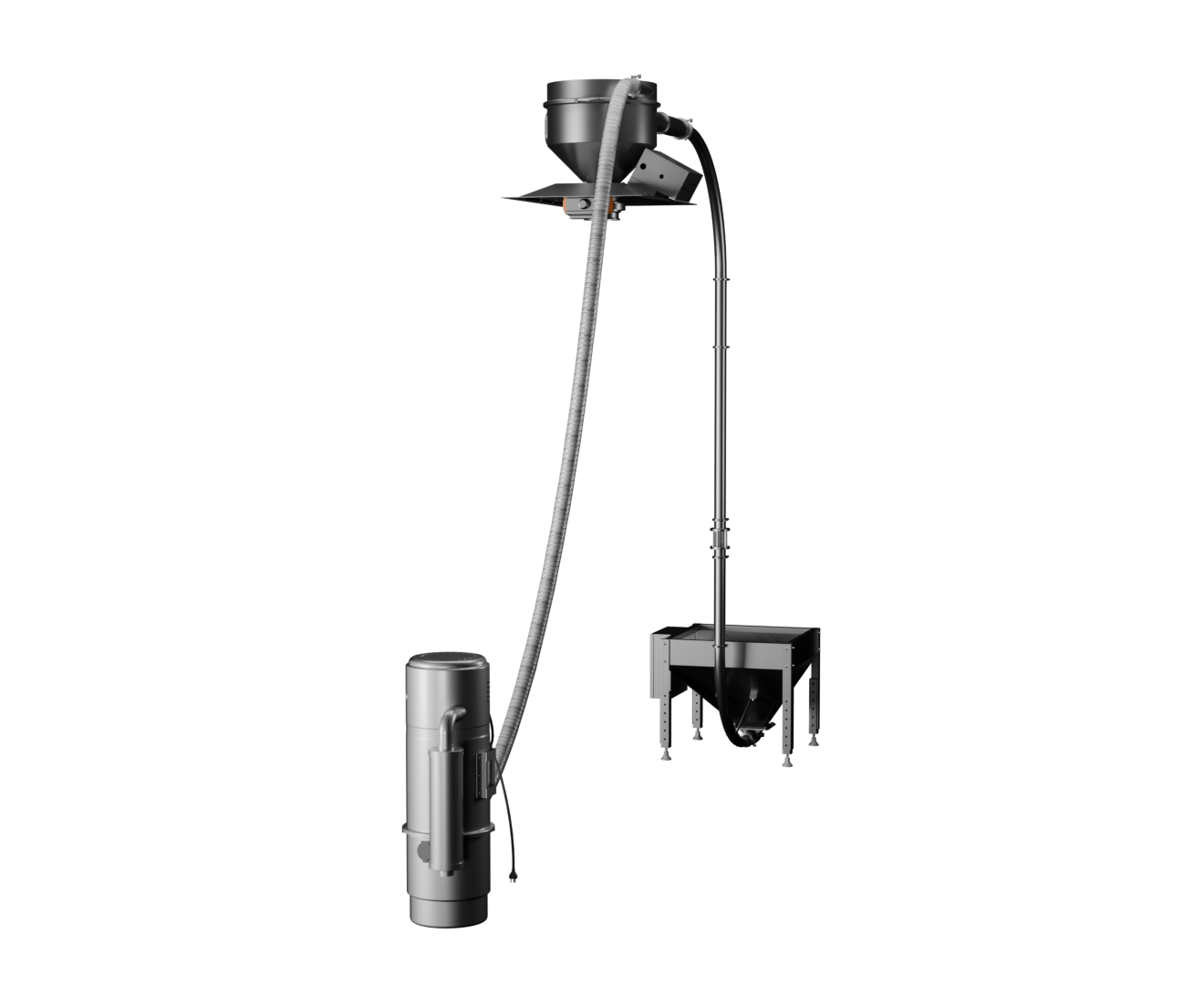

lift_central-vac_turntable_26
lift_central-vac_turntable_27

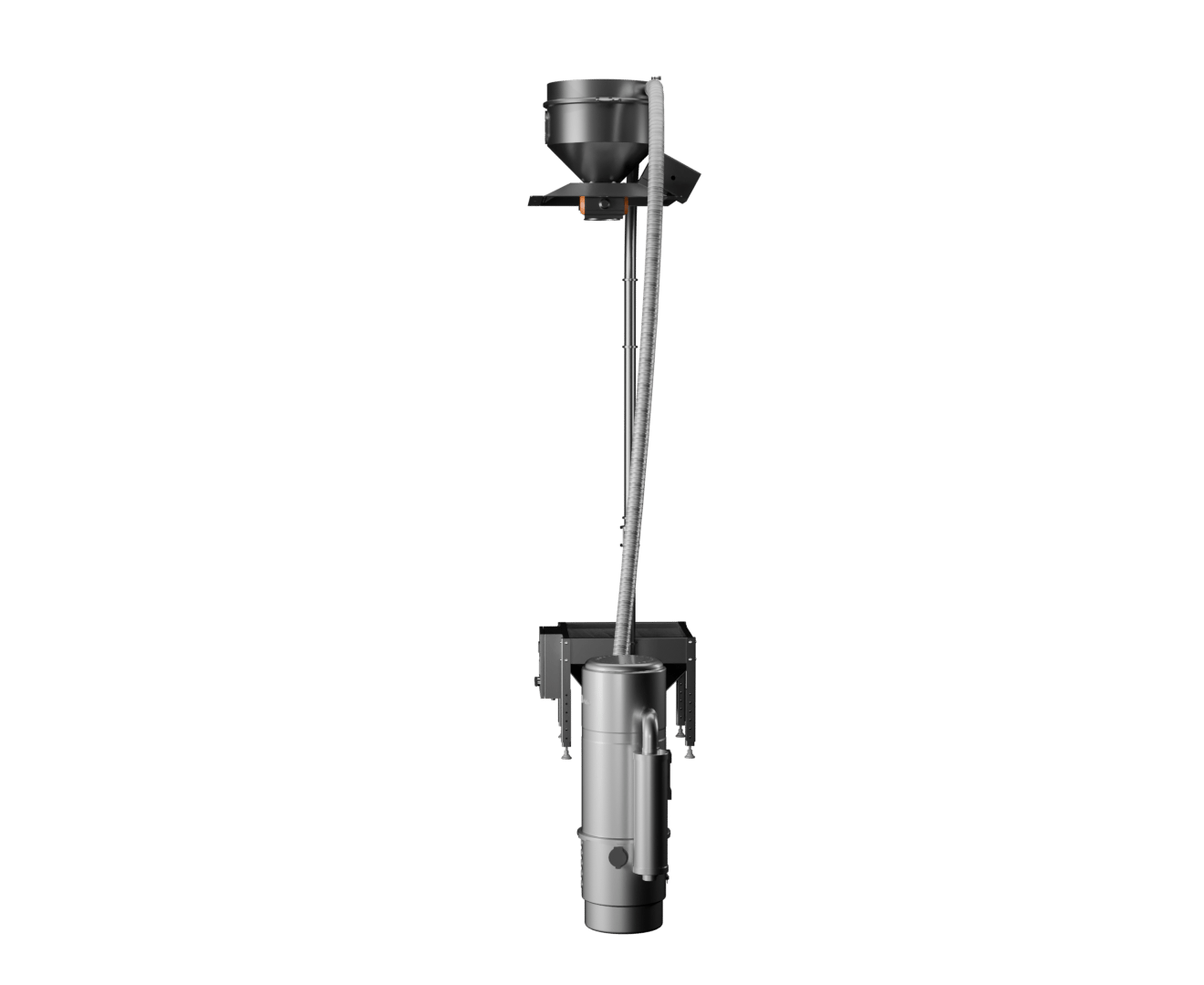

lift_central-vac_turntable_28

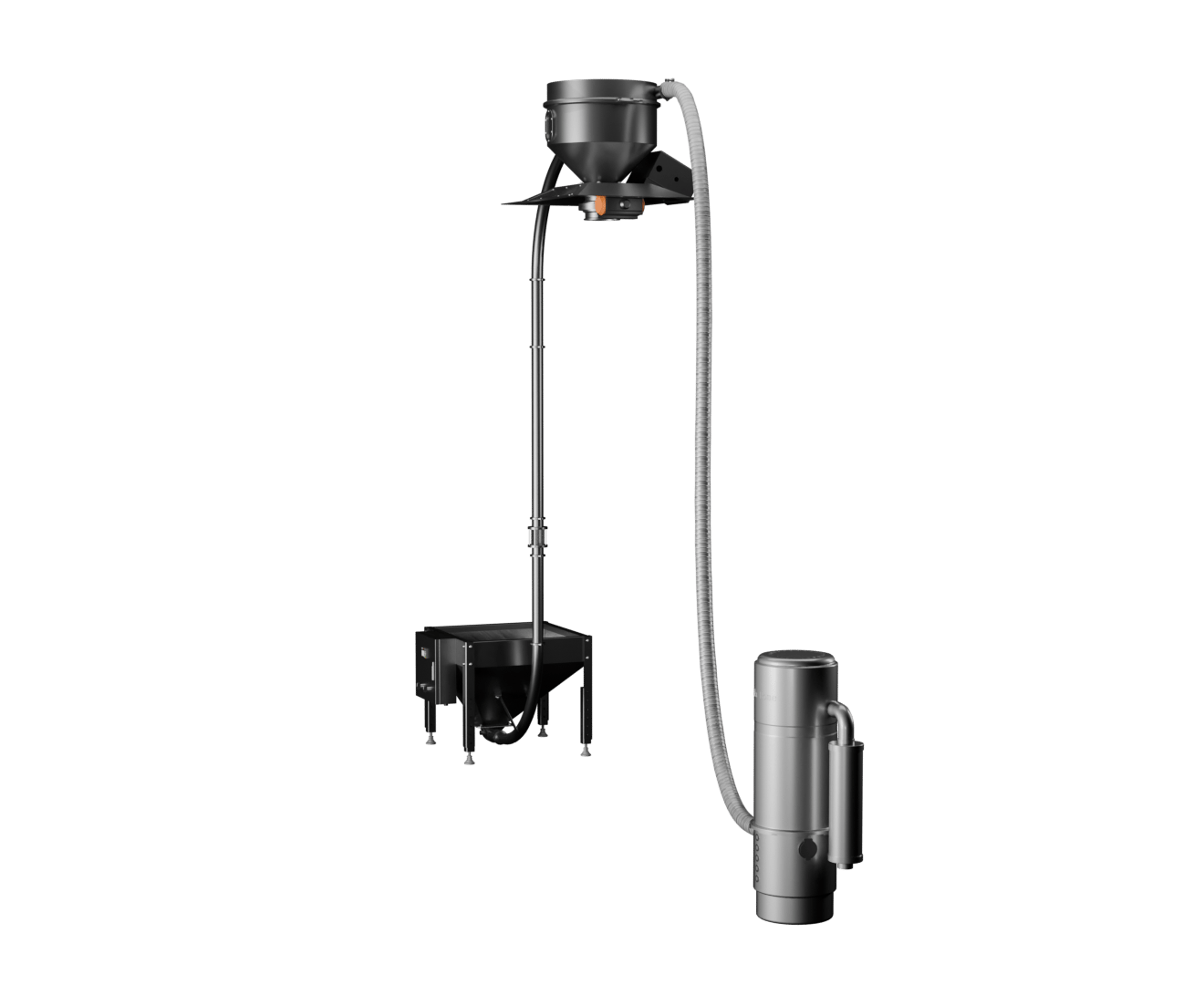

lift_central-vac_turntable_29
lift_central-vac_turntable_30

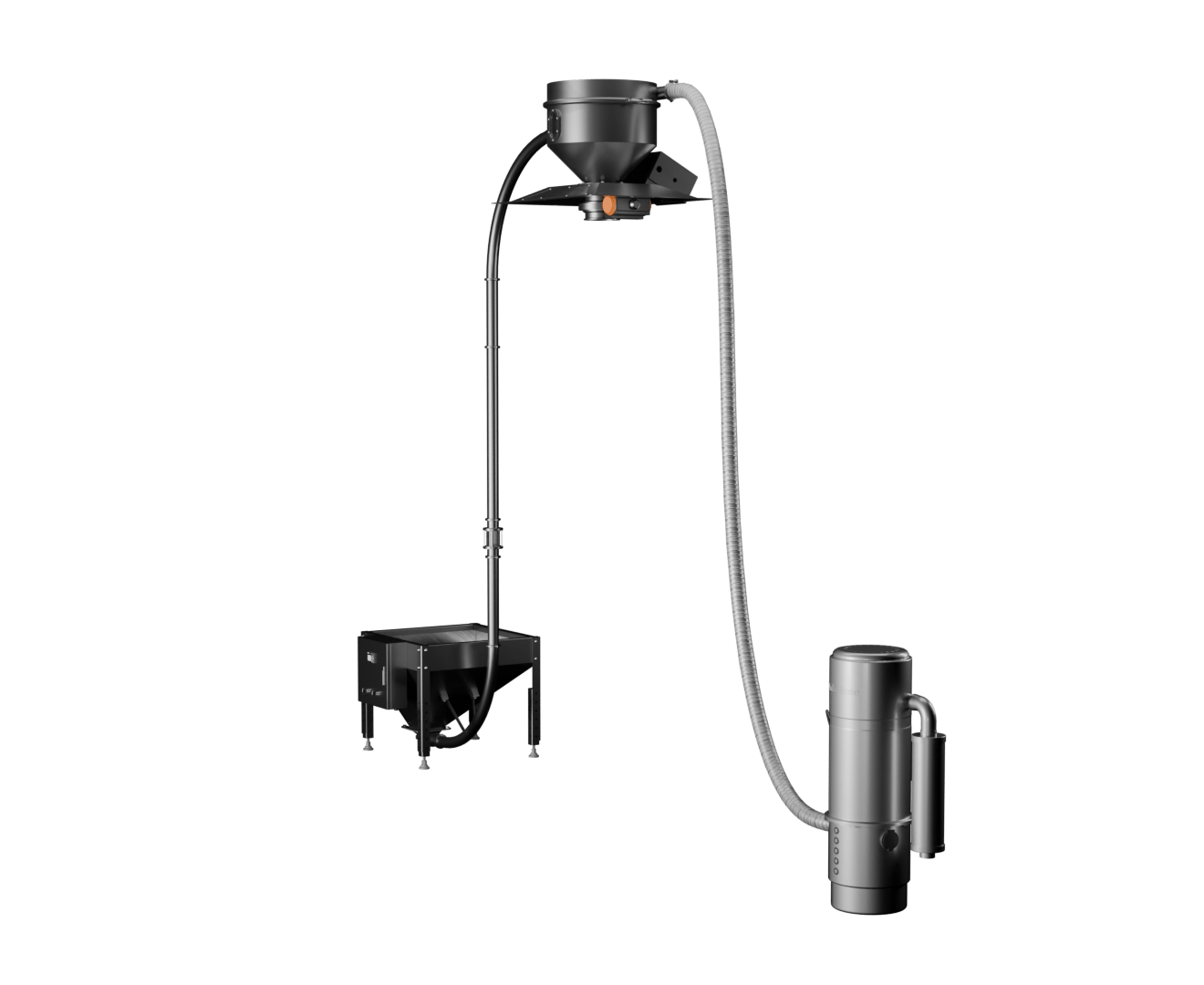

lift_central-vac_turntable_31

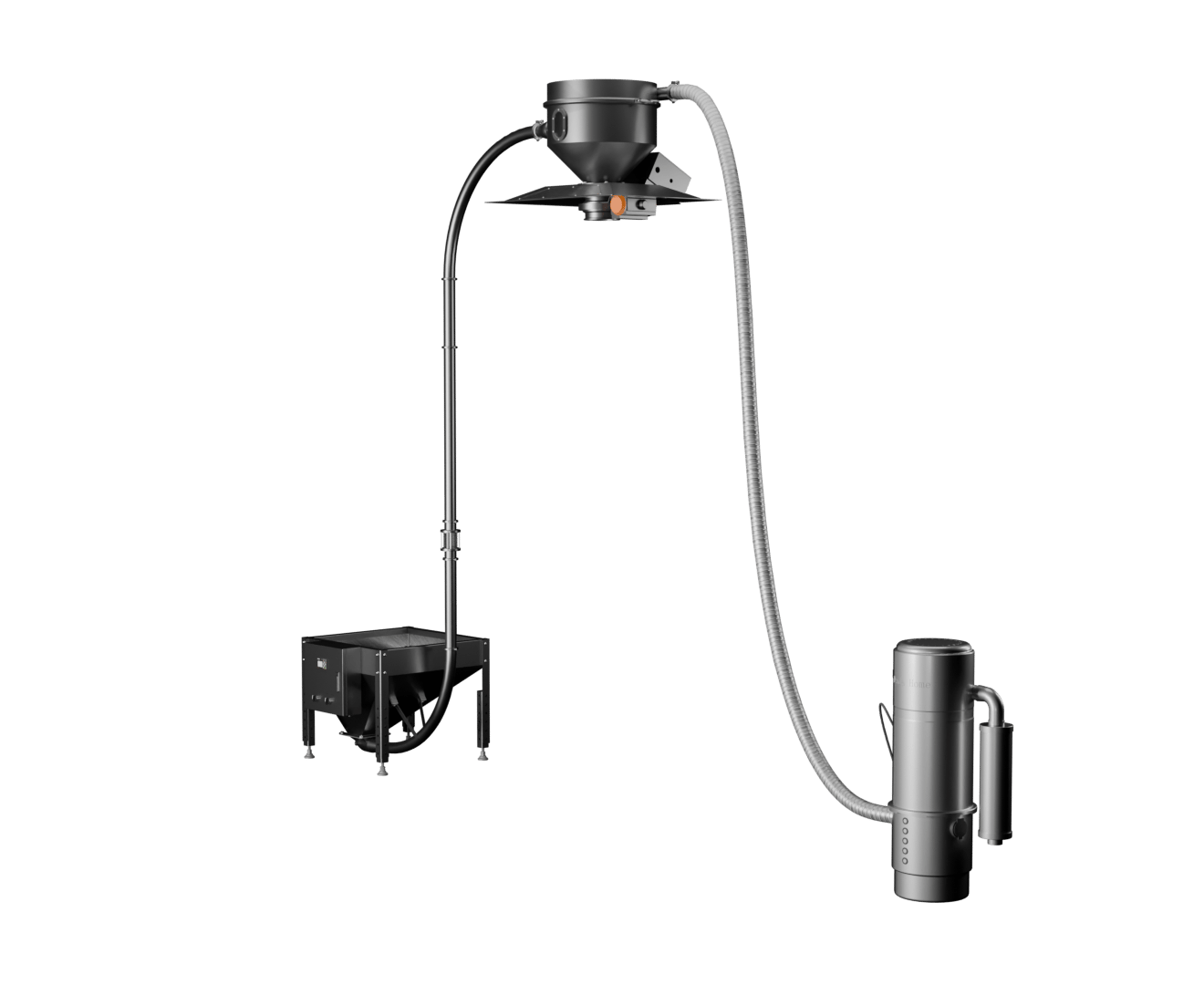

lift_central-vac_turntable_32
lift_central-vac_turntable_33

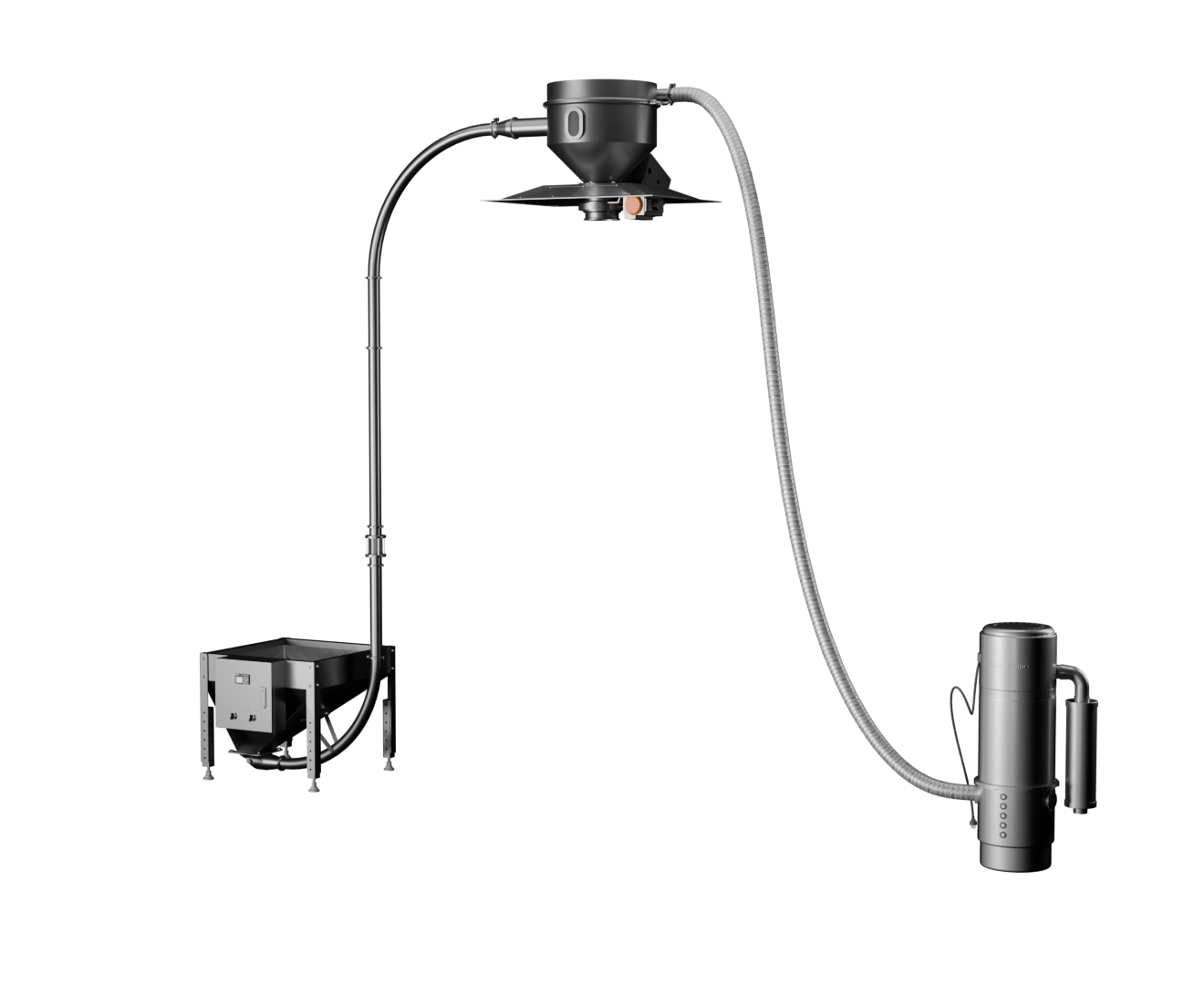

lift_central-vac_turntable_34
lift_central-vac_turntable_35

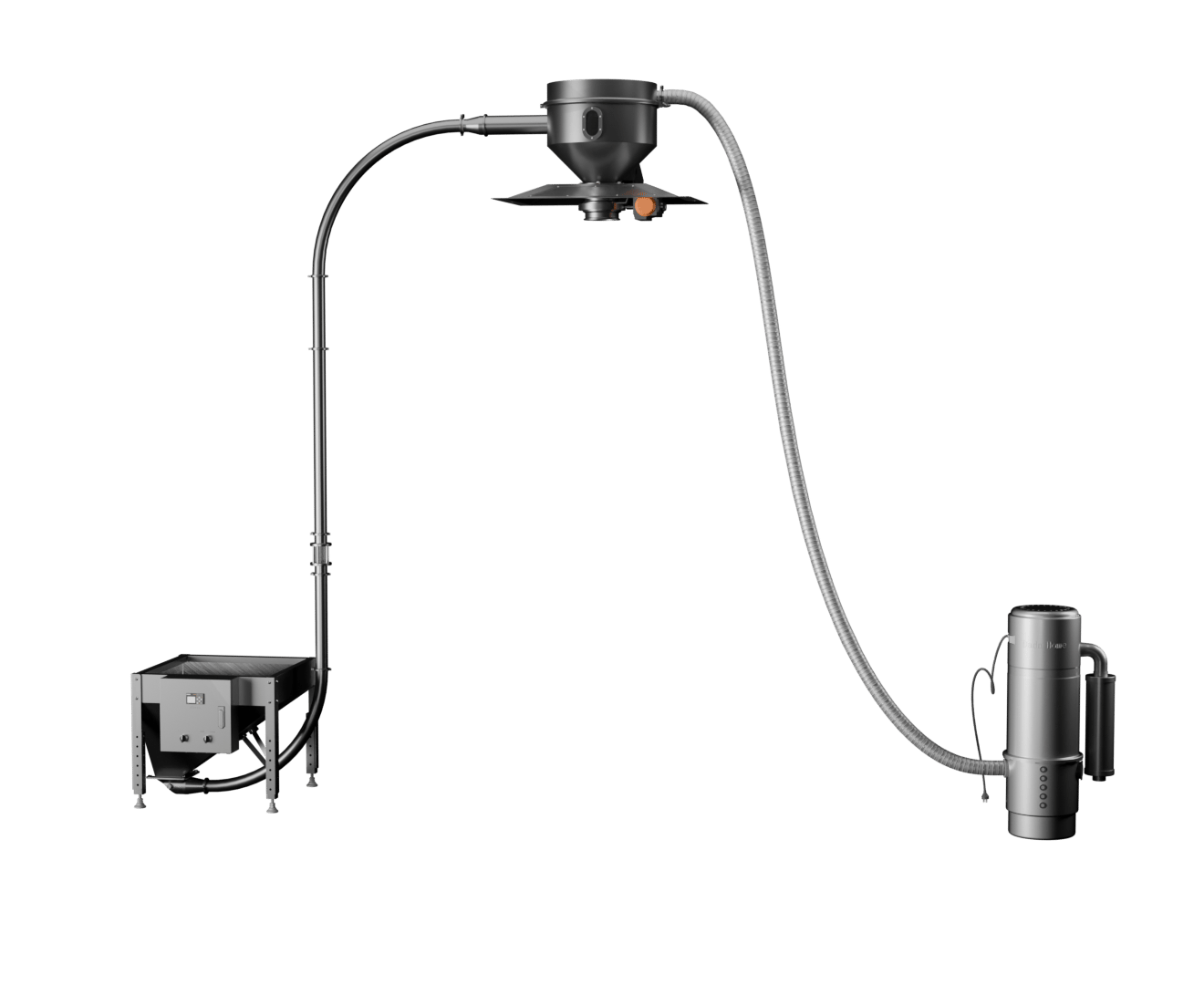

lift_central-vac_turntable_36

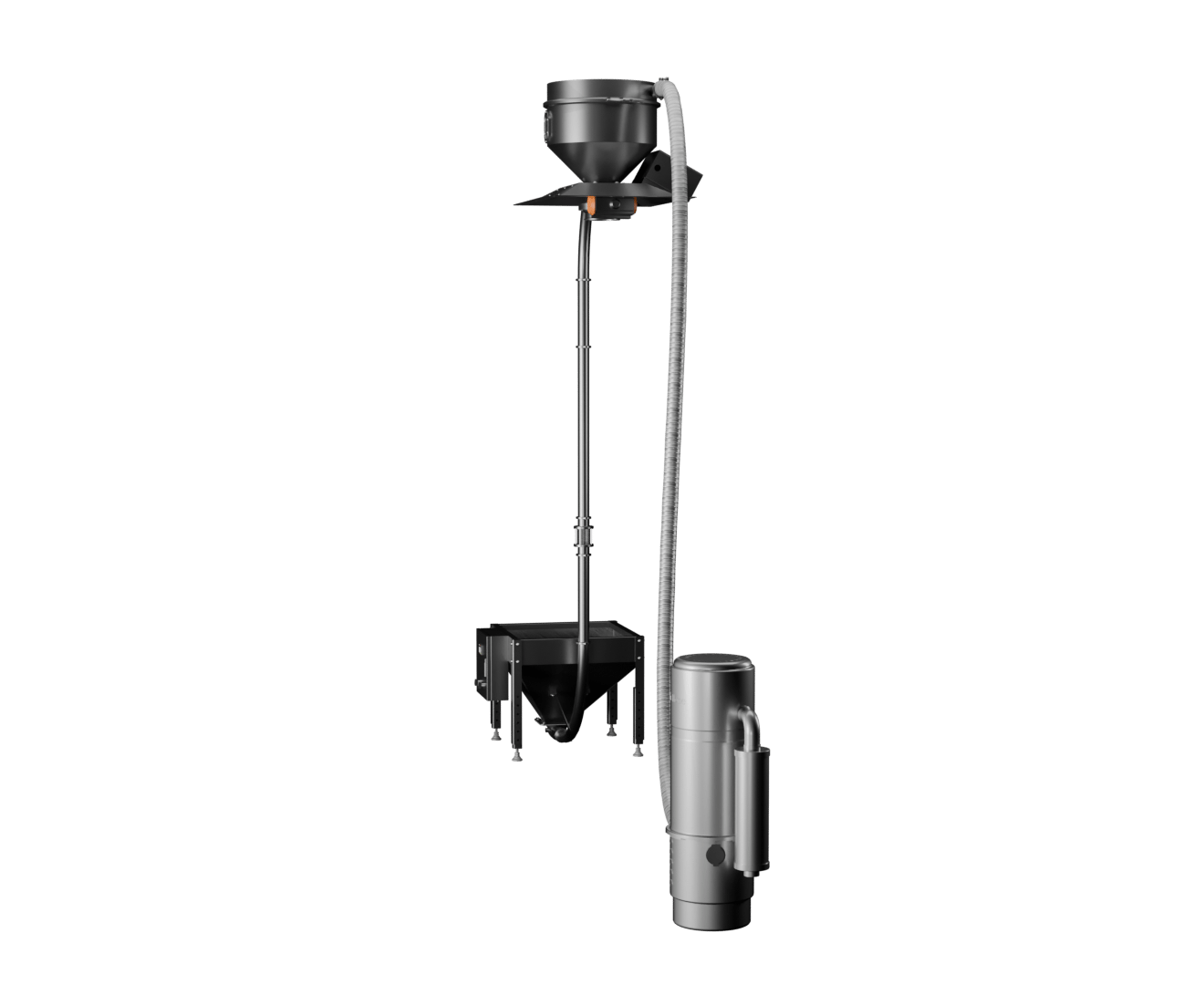

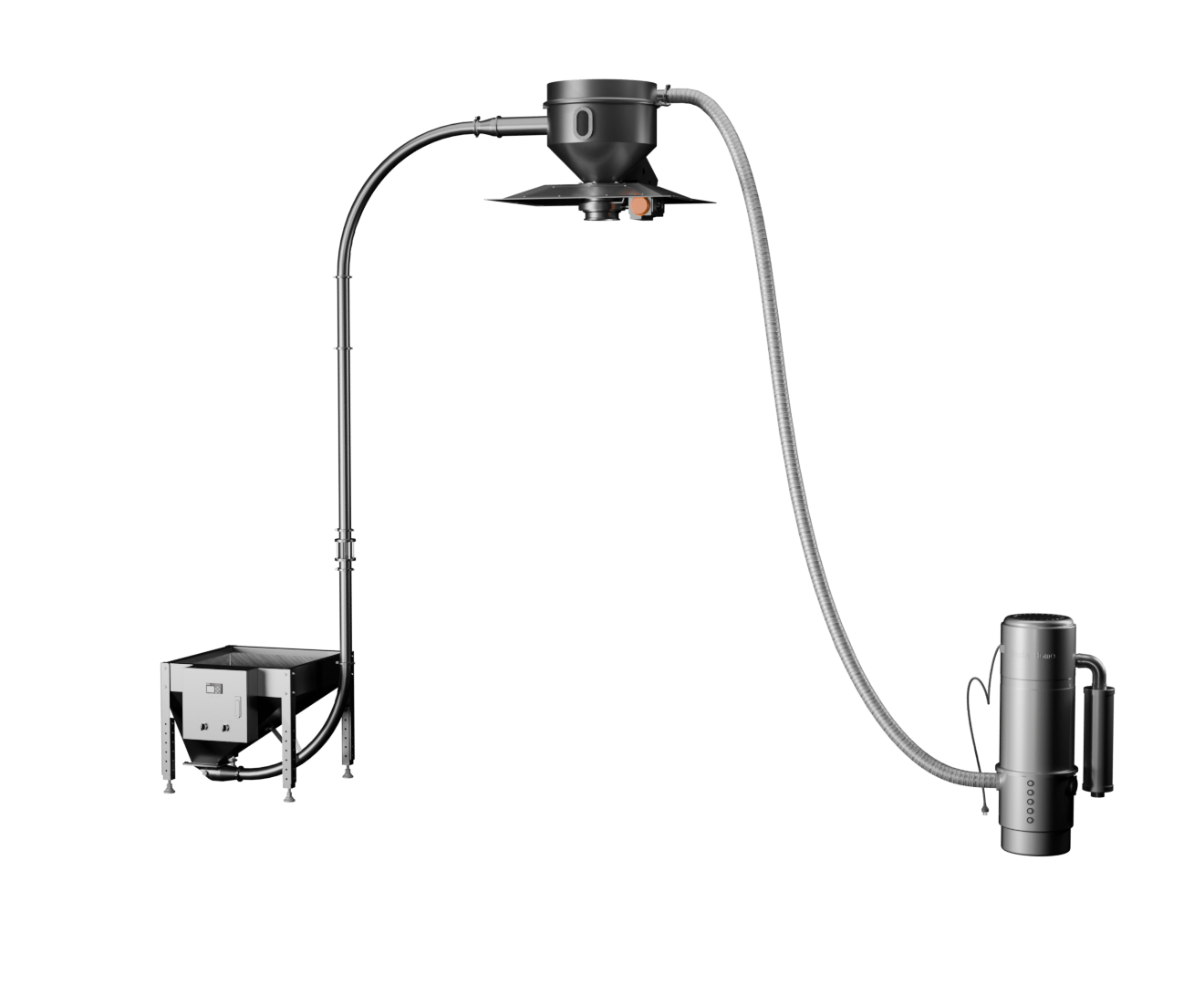

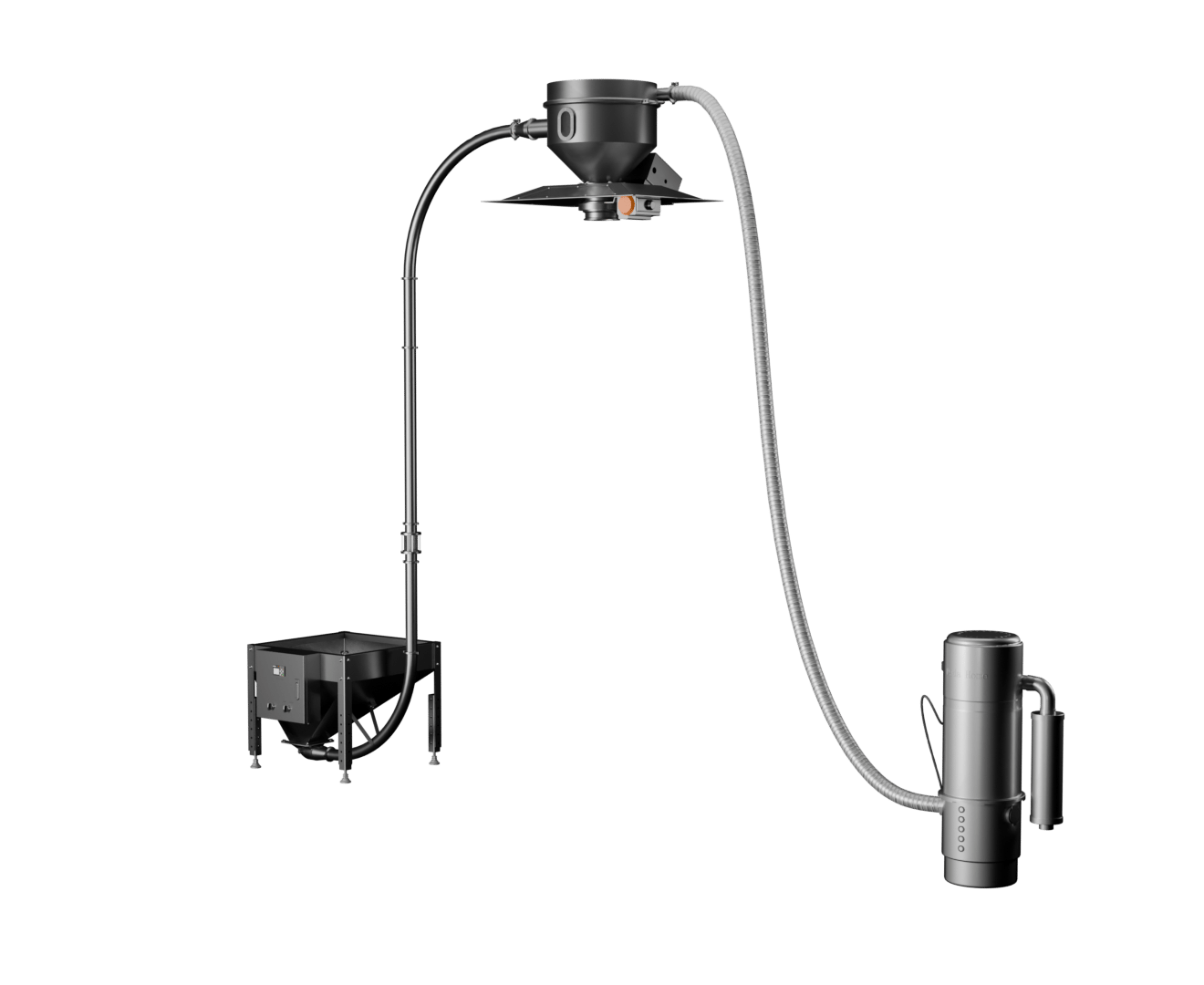

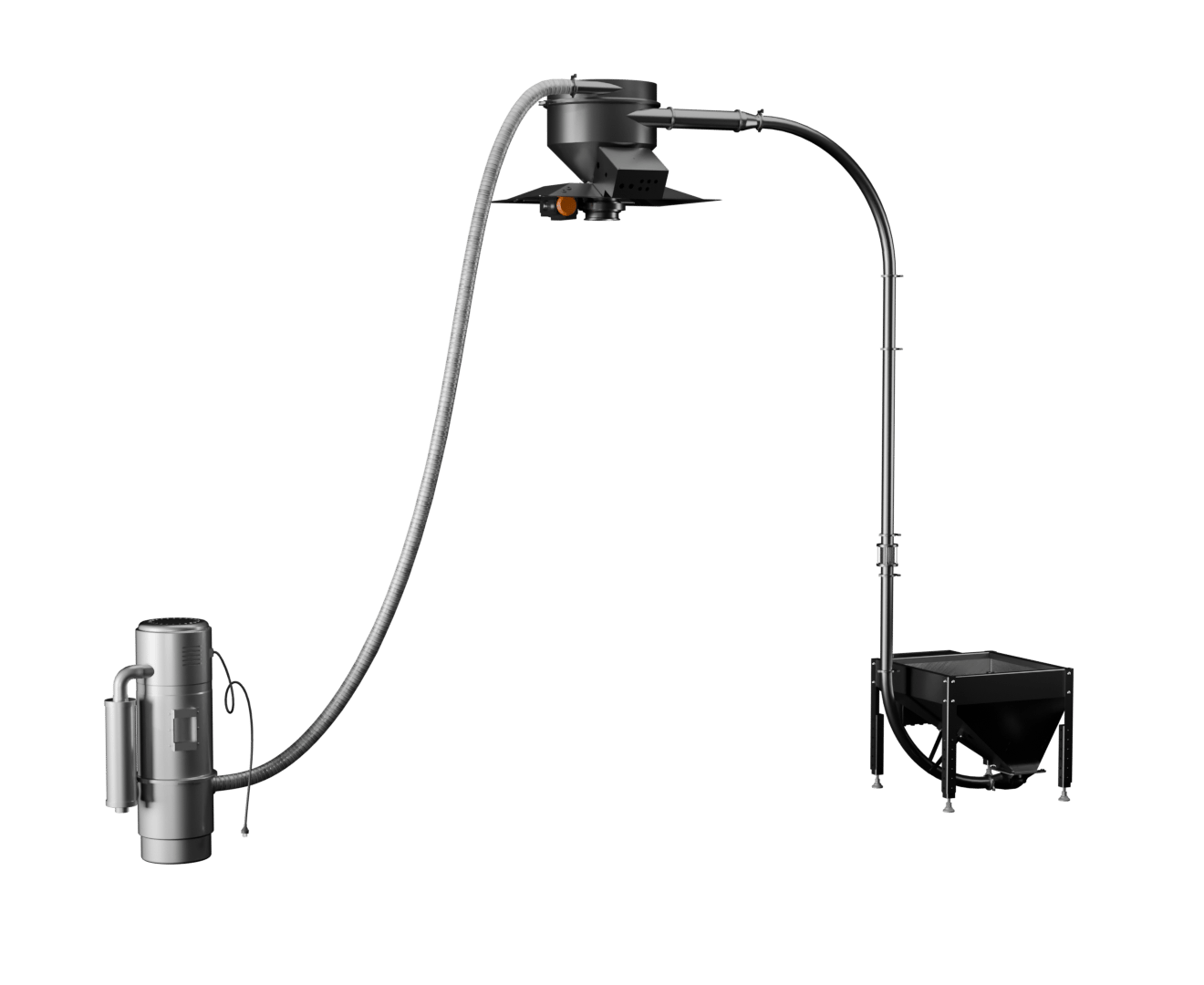

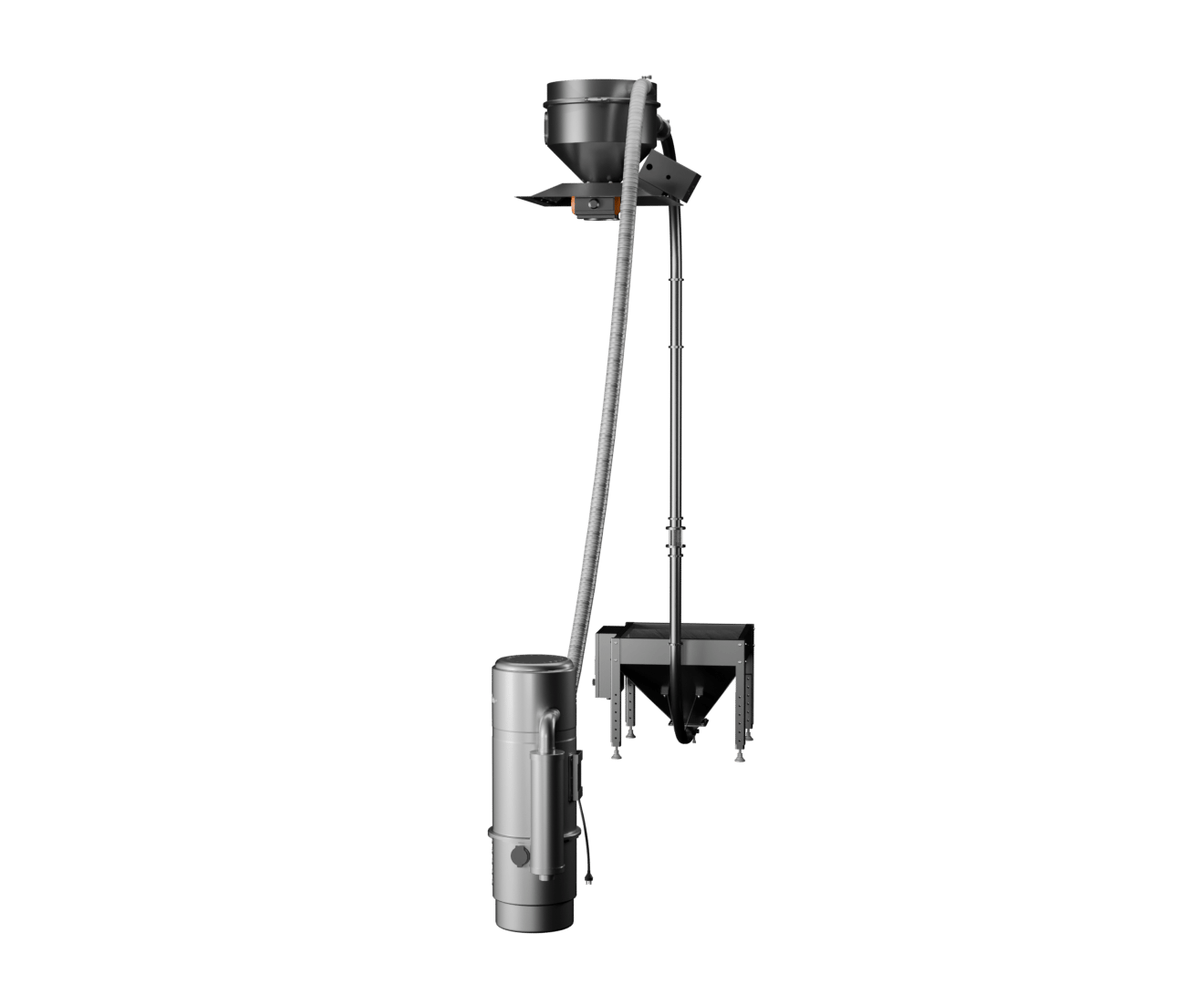

←drag to rotate→

Your Custom-Built Workflow

Full stainless steel. Modular. Built to fit your floor plan, not the other way around.

Interchangeable hoppers, custom pipe lengths, and Tri-Clamp spools that go together in minutes. Add a destoner and your coffee arrives sorted, stone-free, and dust-free — without an extra machine on your floor.

Add a Destoner

Destone while you convey — one machine, one step. Stones are gone before your coffee reaches the next machine.

Built to last

Food-grade stainless steel throughout. Easy to clean, built to outlast every other machine on your floor.

Fits Your Layout

Interchangeable hoppers from 25L to 230L. Custom pipe lengths. A mounting plate that bolts onto any equipment you already own.

Fits Your Roastery

Custom pipe lengths, interchangeable hoppers, and a mounting plate engineered to bolt onto any equipment you already own.

500kg/Hour

Move coffee between any two points in your roastery. Roaster to sorter, sorter to packer — no buckets, no strain.

Cleaner Coffee, Cleaner Air

Built-in dust and chaff removal comes standard. Add a destoner and stones are gone before your coffee reaches the next machine.

FEATURES & BENEFITS

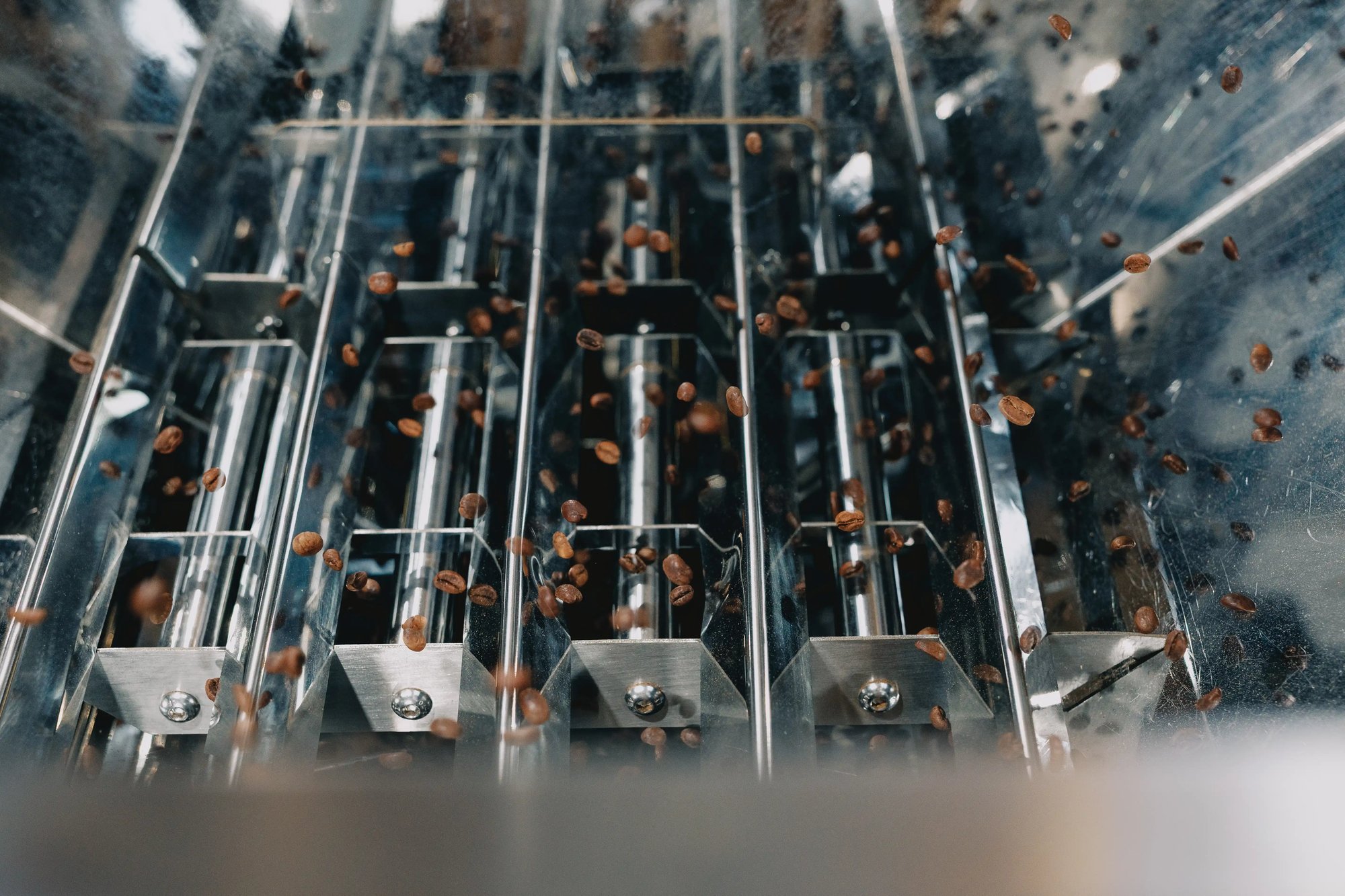

SOVDA WideAwake-3684-2

Rare-Earth Magnets

Every Lift Hopper includes a magnetic trap as a final defense against metal debris. One less thing to worry about.

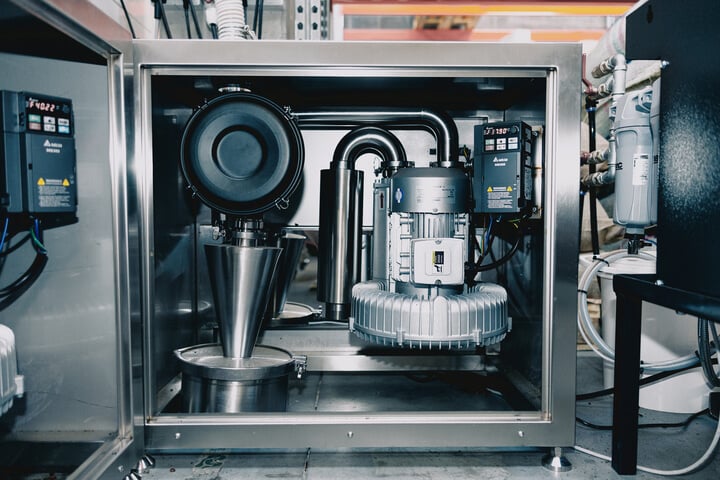

sovda_wideawake_reselect_web-4452_720

Beautifully quiet

The SOVDA Vacuum Box runs near-silent in a roasting environment. More power, better filtration, and your team can actually hear each other.

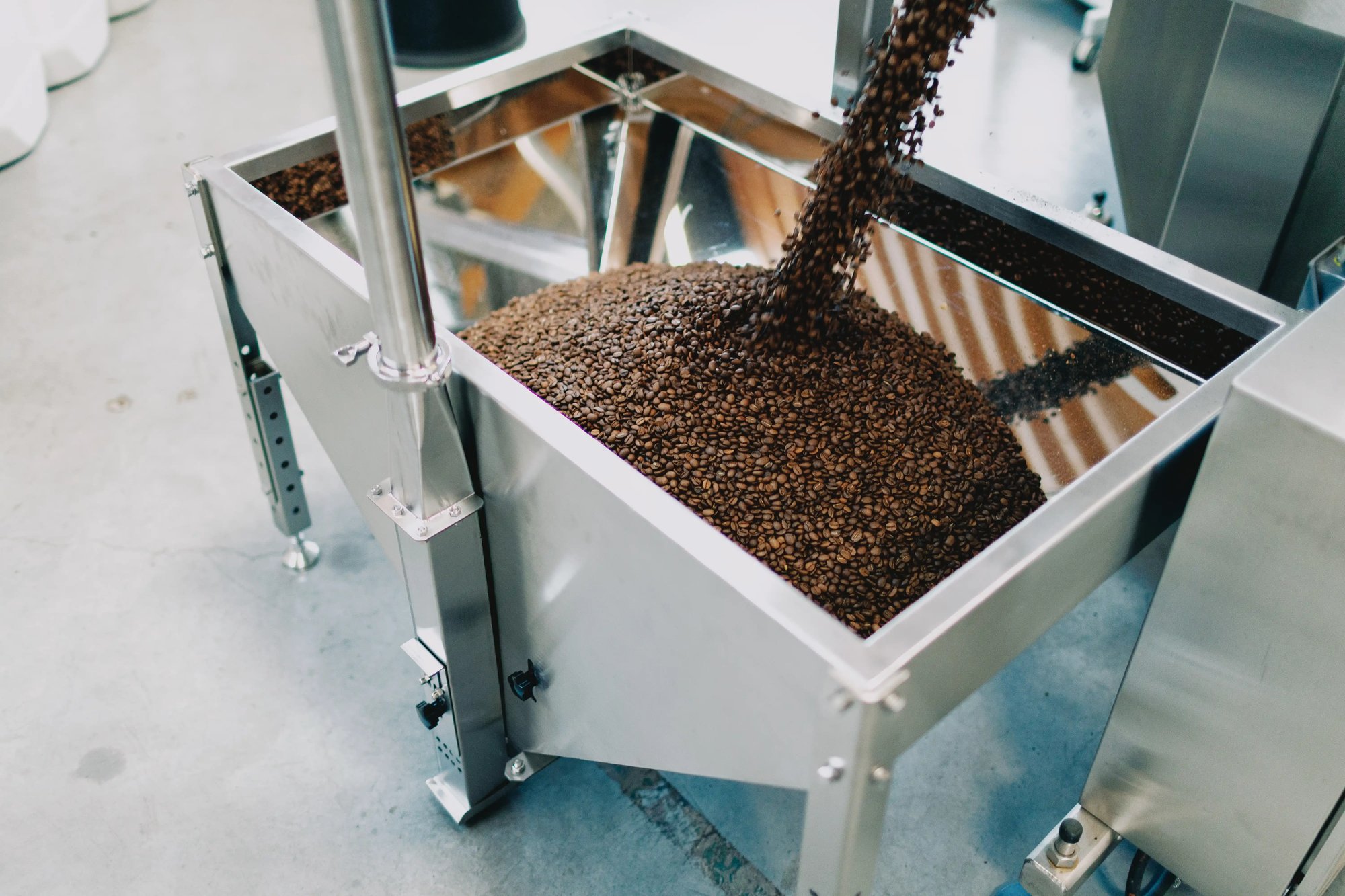

SOVDA WideAwake-5412

Upgrade Anytime

Destoner, sensor kits, precision hopper — add them when you're ready, not before. Every upgrade is retrofit-friendly.

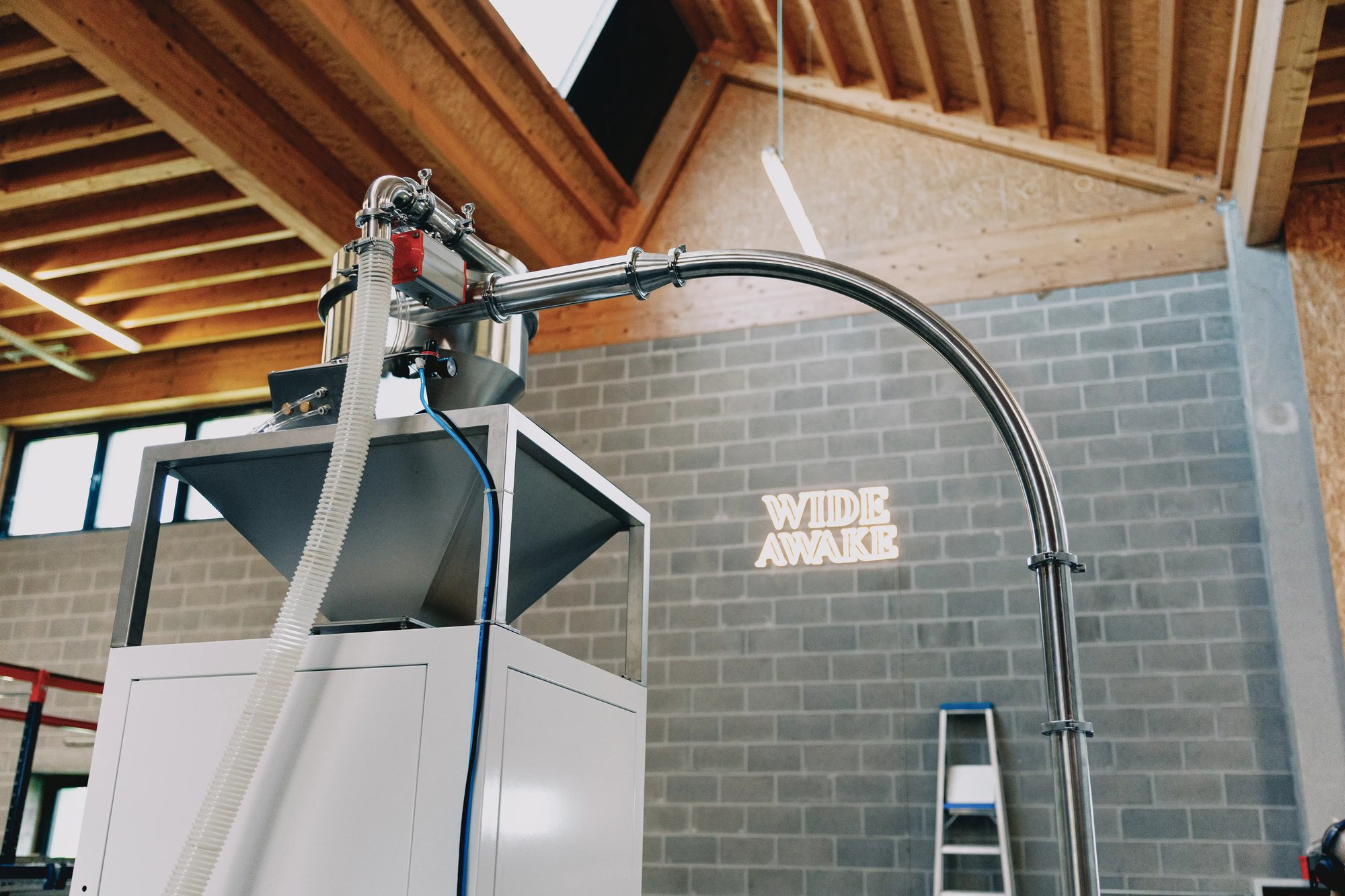

SOVDA WideAwake-4416

Looks the Part

Same matte finish and clean lines as every SOVDA machine. Your Lift won't look like an afterthought on your floor.

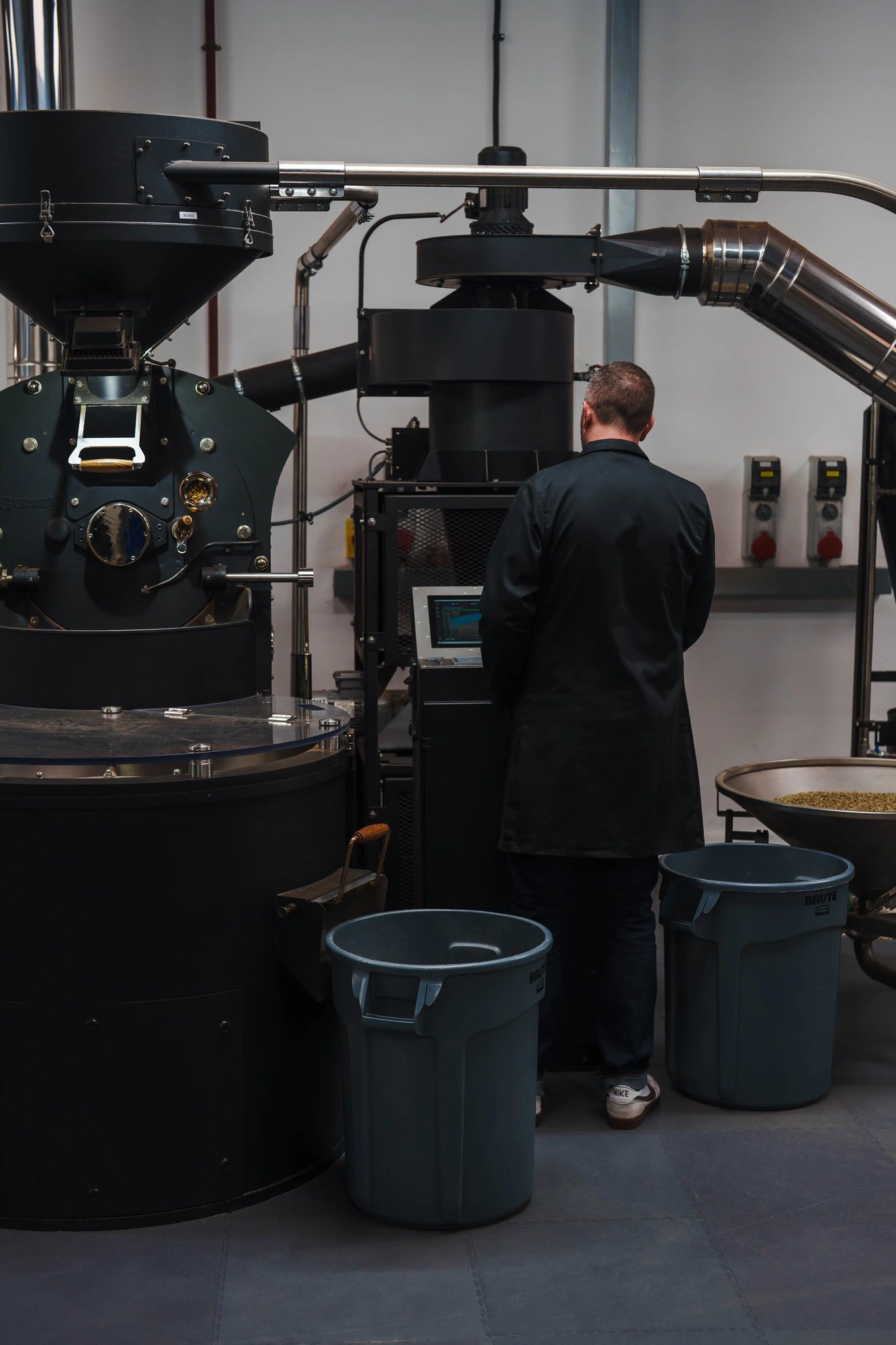

Sovda_Quarter_Horse_May_25_EE-11

Get Hours Back

500kg/hour, no hands required. The time your team spent carrying buckets is now time spent on roasting, QC, or going home on time.

Specs

Configurations

Downloads

Core specs

Convey Rate (green)

900 - 1500 kg/hr

Convey Rate (roasted)

500 - 1000 kg/hr

Construction

Food Grade Stainless steel; Acrylic

Intake hopper sizes

25L, 60L, 150L, 230L

Intake hopper options

Integrated scale; auto start/stop sensors; Lance

Suctions Options

Central Vacuum or SOVDA Vacuum Box

Utility requirements

Power (for Control Box, applies to all configurations)

120 - 220V, 50/60Hz, Single Phase

Power (for central vacuum option)

120V, 60Hz, single phase (North America) -or- 220V, 50Hz, single phase (Global)

Power (for SOVDA Vacuum Box option)

220 - 240v, 50/60Hz, single phase, 2.4kw

Compressed Air

0.017 M^3/h @ 0.4 MPa (0.01CFM @ 60 PSI)

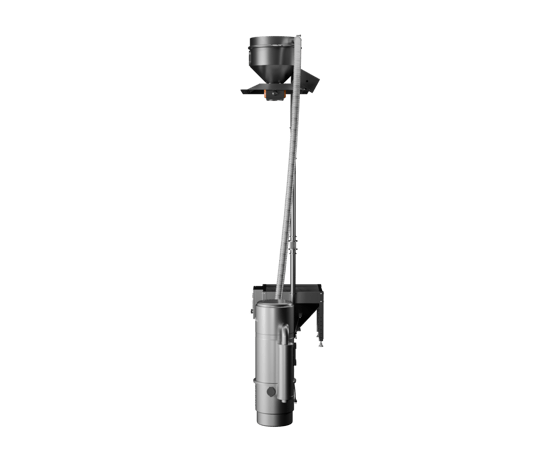

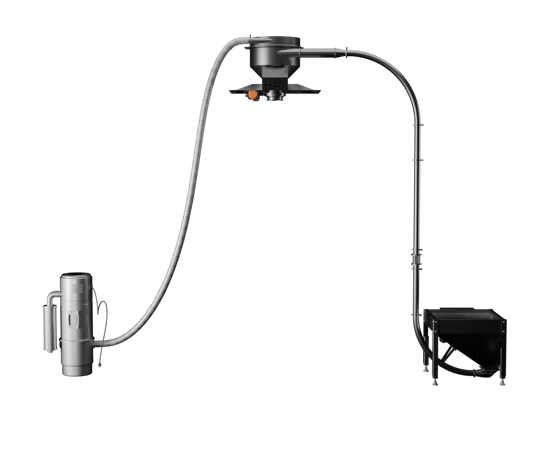

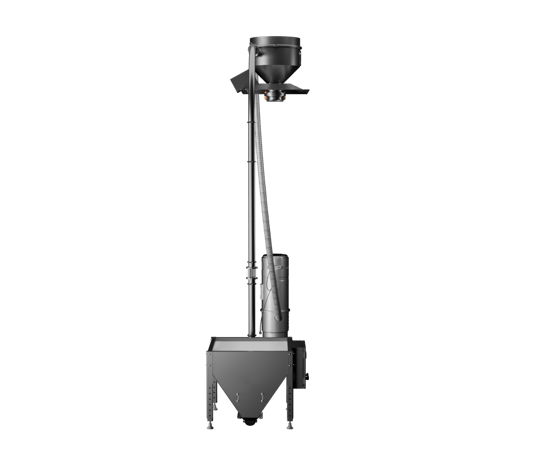

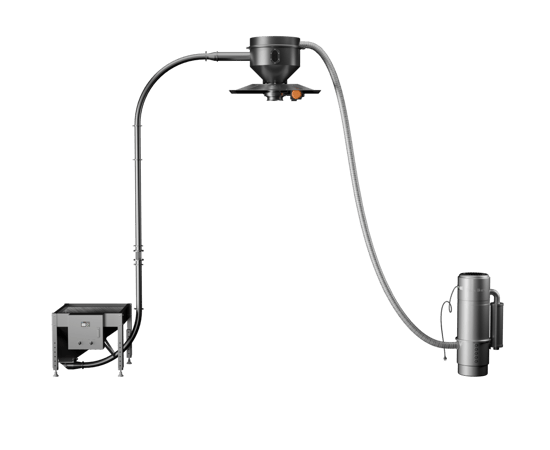

lift_central-vac_turntable_38 lift_central-vac_turntable_37 lift_central-vac_turntable_39 lift_central-vac_turntable_40

SOVDA Lift is designed to be configurable to fit your roastery's needs.

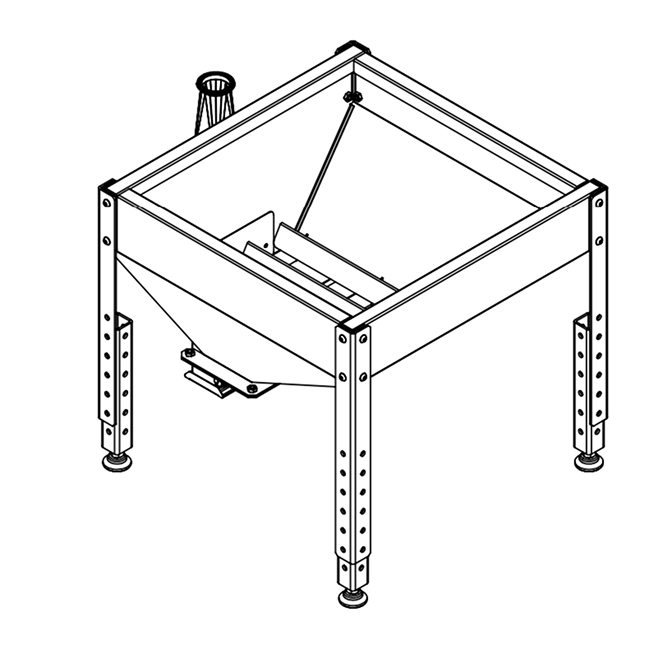

1. Choose your intake:

This could be a Lance, hopper, or both! We offer hoppers in 25L, 60L, 150L (comfortable fits 1+ 60kg sacks of green), and 230L.

Destoners are a great upgrade to any hopper being used with roasted coffee to add another line of defense against foreign debris.

Our Precision Hoppers (integrated scale) are available in both 60 & 150 liter sizes. This can be great for Lift's connected to roasters to measure green coffee loading in, and yield coming out. Having both makes it easy to calculate moisture loss for each batch.

Every hopper can be optioned with coffee detection sensors to increase automation and efficiency in your operation.

2. Choose your pipe run:

Lift's can be made to span tall vertical distances, or long horizontal ones. Lift is all about moving your coffee for you, so you don't have to.

3. Choose your suction option:

Lift is powered by a vacuum, and there are a two great options you can choose from:

Central Vacuum: Compact and capable of running on 120v (North America), or 220 (Europe, Asia). Less expensive and gets the job done.

Vacuum Box: Upgrade to the Vacuum Box if you're looking for industrial power and performance. It has quieter and longer service life compared to the Central Vacuum.

Not sure what you need? Reach out to us and we'd be happy to help you configure a Lift specifically for your needs.

Documents

Lift Brochure (PDF)

Download

Lift Sensor Option Brochure (PDF)

Download

Lift Layout Plan View Assets (PDF)

Download

Lift Layout Plan View Assets (DWG)

Download

Roasteries change, SOVDA Lift adapts

Adaptability at its core—a purpose-built system with a limitless range of upgrades and customization features engineered to grow alongside your Roastery.

Configuration

Your Layout, Your Configuration

Short run or long. One machine or five. We'll design a pipe layout that fits your roastery — not the other way around. Central vacuum comes standard; upgrade to the SOVDA Vacuum Box if you need quieter, stronger performance.

GALLERY

Black and White, United States

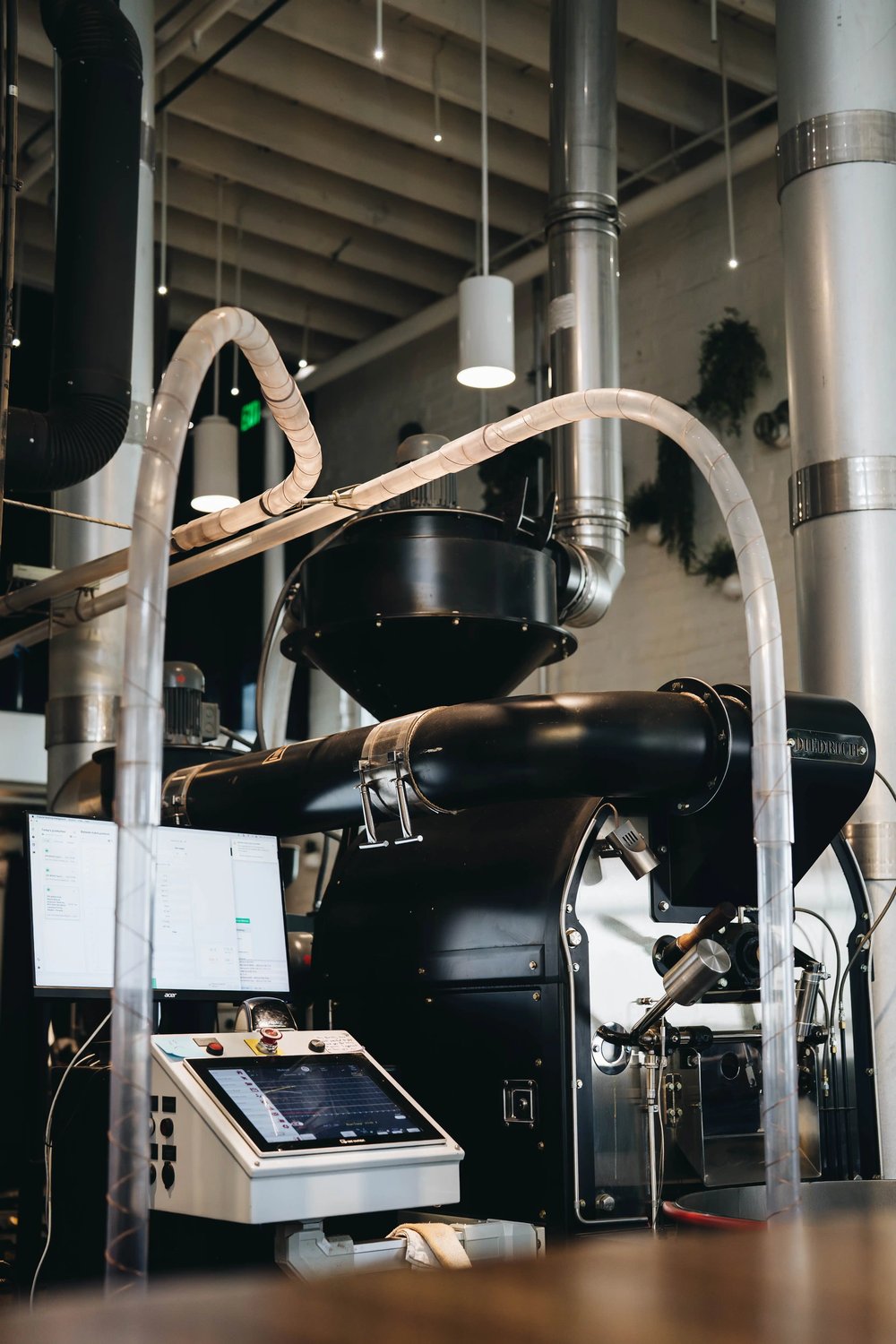

Custom Lifts in use at Onyx Coffee Lab, United States

DAK Coffee Roasters, Netherlands

“We purchased the SOVDA Lift purely for practical reasons. I couldn’t imagine my team lifting 500 kilos every day into the machine, so it was basically a must.”

— Jaroslav Tucek

Co-founder, Doubleshot

Tell us what you're moving and where. We'll design the Lift setup that fits.

Talk to our Team

EXPLORE OUR OTHER PRODUCTS

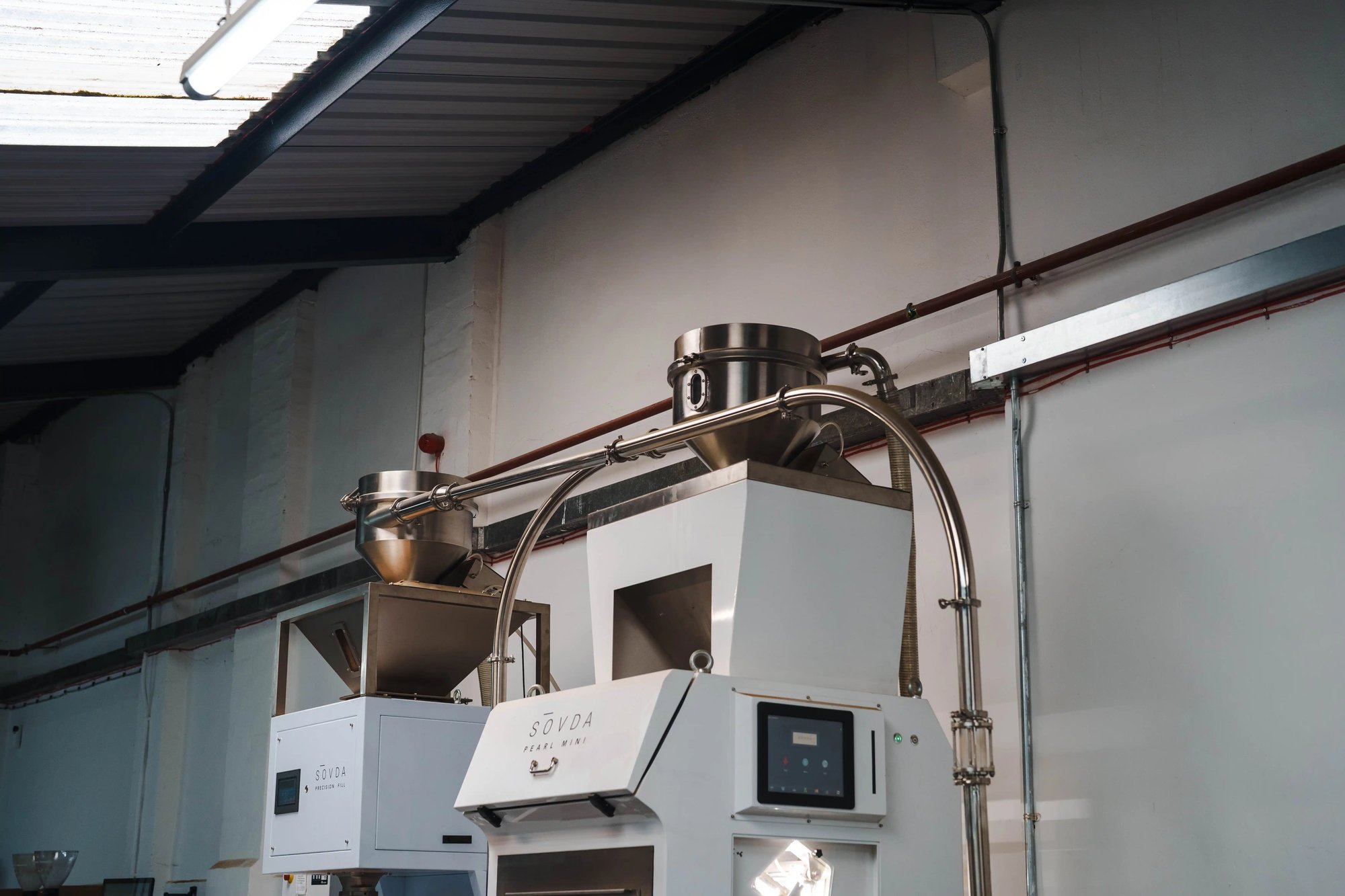

Sovda_Quarter_Horse_May_25_EE-88

Pearl Mini

Know what's in every bag

Two 4K cameras. Every bean inspected. Quakers, stones, burnt beans — gone before they reach your customer.

Pearl Mini

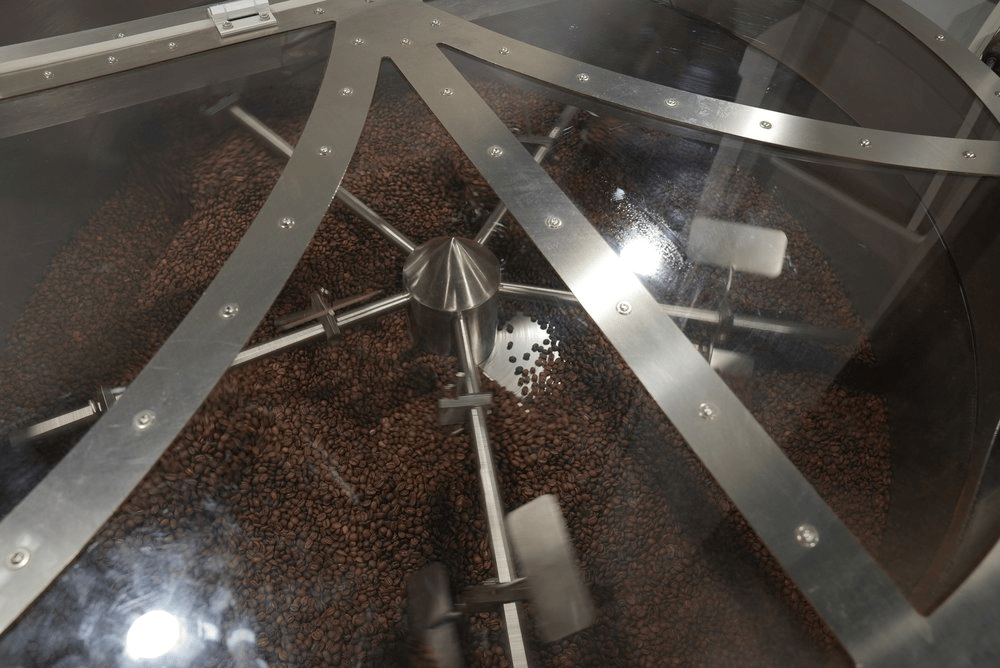

DSC01590

SOVDA Blend

Your cooling tray isn't a blender

5kg of repeatable, consistent blends — without tying up your cooling tray between roasts.

SOVDA Blend

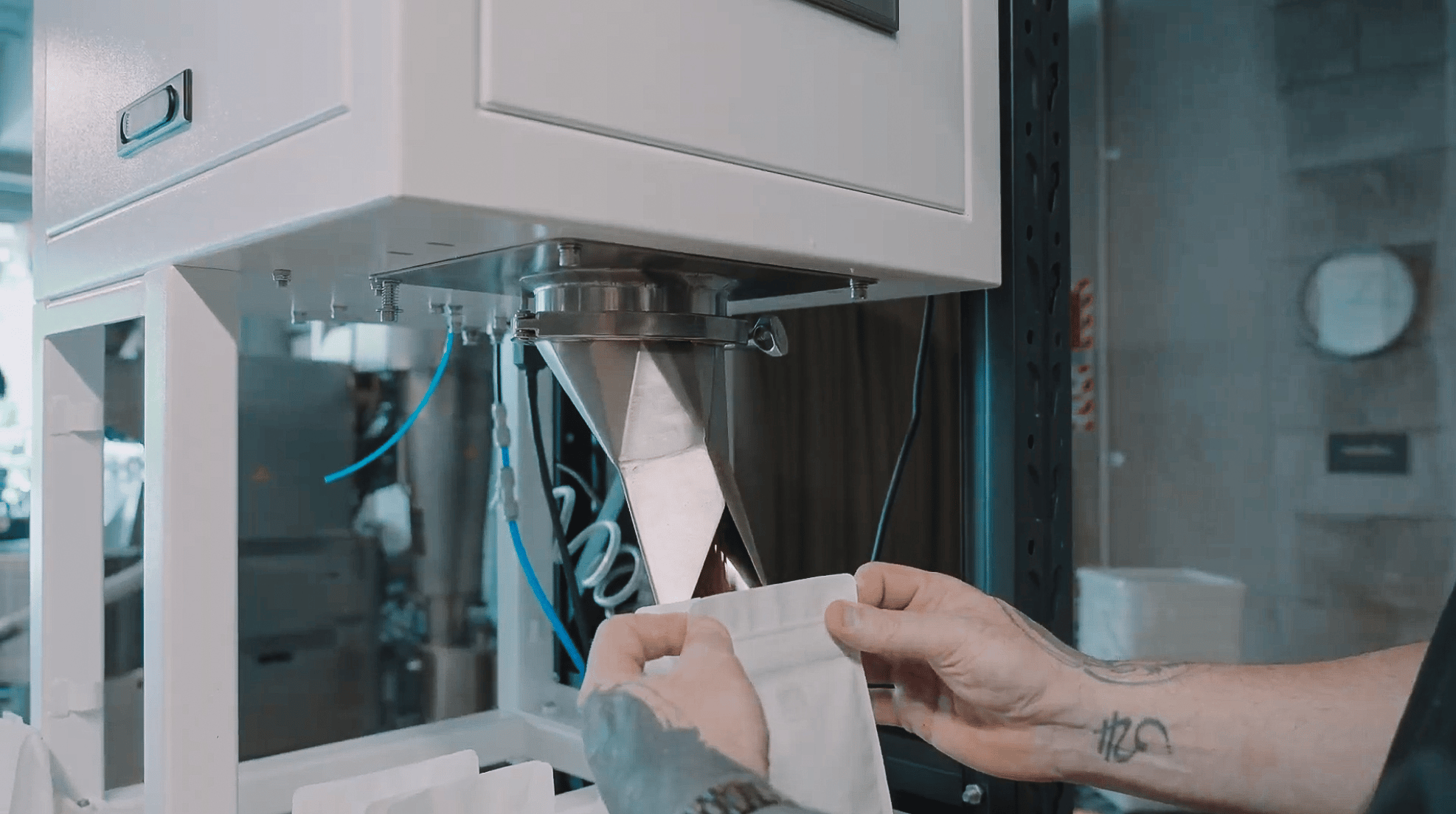

Screenshot 2025-12-04 at 1.49.44 PM

Precision Fill Mini

Full-size precision. Benchtop footprint.

Accuracy, and up to 20 bags per minute. Set your recipe, step on the pedal, get your afternoon back.

Precision Fill Mini

Your Lift questions, answered

Can I purchase a Lift just for moving green coffee into my roaster?

Yes. Our Lifts have already been mounted onto multiple roasters worldwide for green coffee conveyance. We just need the measurements of your roaster hopper and an additional $500 to fabricate the custom mount for that hopper.

Can I purchase a Lift for my weigh-and-fill or color sorter machines?

Yes, you can! Although designed to fit our Pearl Mini and Precision Fill machines, our Lifts can be customized to fit any existing machines in your production space. We’ll require an additional $500 to create a custom mount for your roaster, weigh-and-fill, destoner, color sorter, storage depot/silo etc.

Can I use the Lift for ground coffee?

Unfortunately, no. We’ve previously received inquiries about creating a ground coffee solution, but our equipment suites don’t yet provide one. All of our equipment is compatible with green or roasted whole-bean coffee. However, we recommend purchasing equipment specifically for either option, as alternating between green and roasted (or ‘raw’ and ‘cooked’) coffee beans is time-consuming and tedious to clean and purge.

How hard is it to set up Lift?

While SOVDA Lifts aren’t technical to set up, they require some heavy lifting. We recommend having two people assist with positioning the cyclone on top of your equipment. The pipe runs use Tri-Clamp spools, which are incredibly easy and fun to assemble! You should be able to set up your Lift in under 2 hours. Your SOVDA Technical Brand Ambassador will be available to answer any questions and our straightforward assembly guides will take you through the process step-by-step.

What’s the lead time for Lift?

Generally, the lead time from order purchase to delivery is around 100 days. This includes production and shipping times without additional equipment. Customizations can increase lead times. Lift parts are occasionally stocked, so depending on your Lift options (Destoner, Precision Hopper, Lance, Sensor Package etc.), you could receive your Lift much sooner.

Can I customize my Lift?

We have numerous customization options, including various hopper sizes, a modular destoner upgrade, integrated hopper scale options, Lance, Sensor Package etc. Please reach out to your Technical Brand Ambassador or distributor for more information.

What’s the durability like for Lift?

Our Lifts have been produced since our inception with minimal maintenance reports. SOVDA only uses over-build components; most parts in the Lift never come even close to their maximum operating ranges and, as a result, provide incredible durability.
